Same model may have multiple batches, images only for reference.

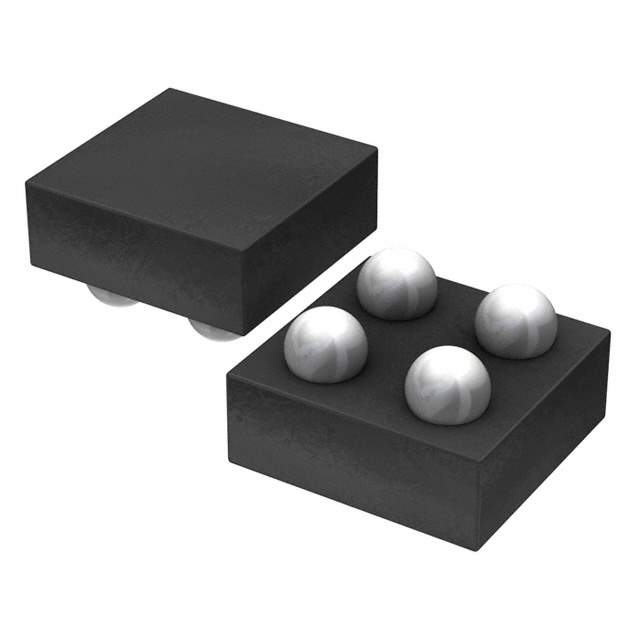

SC705CSTRT Real Image
Same model may have multiple batches, images only for reference.

SC705CSTRT

Part No SC705CSTRT
Manufacturer Semtech Corporation
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWITCH N-CHAN 1:1 4CSP / Power Switch/Driver 1:1 N-Channel 500mA 4-CSP (0.76x0.76)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Power Distribution Switches, Load Drivers
Mfr Semtech Corporation
Package Tape & Reel
Product Status Obsolete
Switch Type General Purpose
Number of Outputs 1
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 1.1V ~ 3.6V
Supply Voltage - Operating Not Required
Current - Output (Max) 500mA
Rds On (Typ) 64mOhm
Features Load Discharge, Slew Rate Controlled
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Supplier Device Package 4-CSP (0.76x0.76)
Package / Case 4-WFBGA, CSPBGA
Other Names SC705CSTRTDKR,SC705CSTRTCT,SC705CSTRTTR
Standard Package 5,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1253230-SC705CSTRT
Ultra Librarian 3D Model Ultra Librarian SC705CSTRT CAD Model

Description

The 1253230-SC705CSTRT from Semtech Corporation is a high-performance power distribution switch designed for various General Purpose applications.

  • Output Switch Type: N-Channel
  • Current Output (Max): 500mA
  • Output Configuration: High Side
  • Features: Load Discharge and Slew Rate Controlled output with On/Off interface
  • Package: Tape & Reel with 4-WFBGA, CSPBGA package/case
  • Operating Temperature: -40°C to 85°C (TA)
  • Operating Supply Voltage: Not required
  • Status: Obsolete
  • Availability: 54 pct
