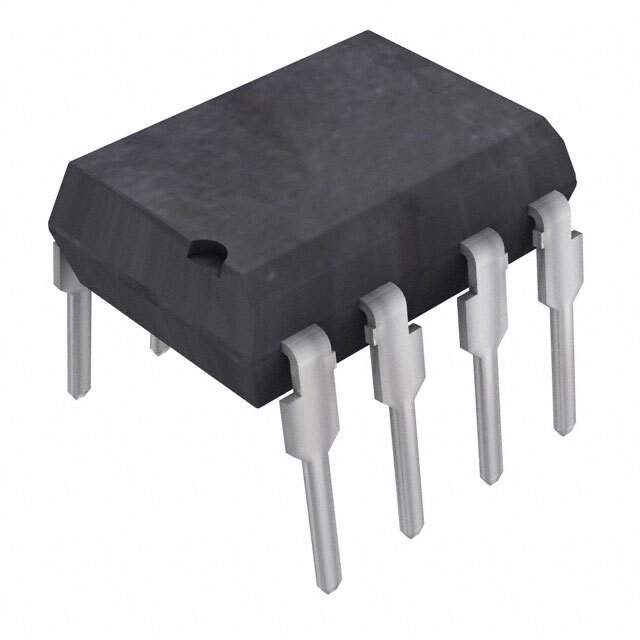

VO1263AB Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number 2000720-VO1263AB
Win Source Part Number Cross
Manufacturer Vishay Semiconductor Opto Division
Category Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Package Tube
Product Status Active
Number of Channels 2
Voltage - Isolation 5300Vrms
Turn On / Turn Off Time (Typ) 16µs, 472µs
Output Type Photovoltaic
Voltage - Output (Max) 16.5V
Ultra Librarian 3D Model Ultra Librarian VO1263AB CAD Model

Description

The Vishay Semiconductor Opto Division is a manufacturer of isolators optoisolators transistor, photovoltaic output optoisolators.

  • Package: tube package
  • Channels: two channels
  • Voltage Isolation Rating: 5300Vrms
  • Maximum Output Voltage: 16.5V
  • Turn On/Turn Off Time: 16μs and 472μs, respectively
  • Status: active product
