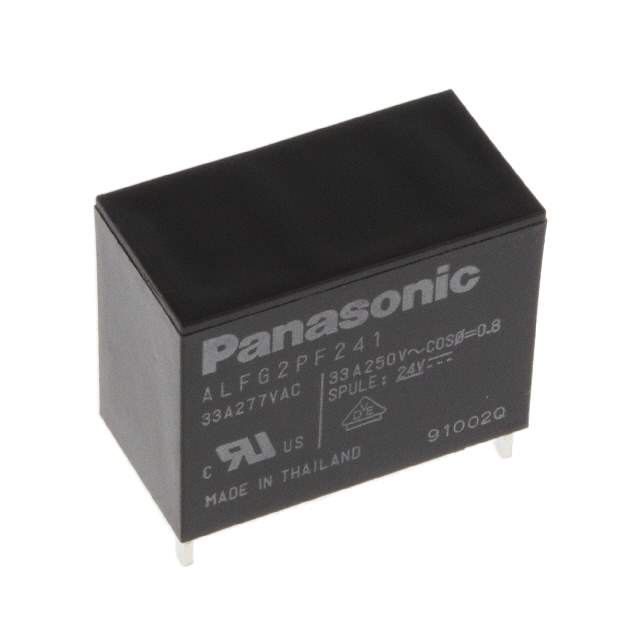

ALFG2PF241 Real Image
Same model may have multiple batches, images only for reference.

ALFG2PF241

Part No ALFG2PF241
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 33A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series ALFG
Package Bulk
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 33 A
Switching Voltage 250VAC - Max
Coil Current 58.6 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class F
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 410 Ohms
Base Product Number ALFG2P
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names 255-5928,ALFG2PF241-ND
Standard Package 50
Win Source Part Number 968272-ALFG2PF241
Ultra Librarian 3D Model Ultra Librarian ALFG2PF241 CAD Model

Description

The ALFG series relay from Panasonic Electric Works is a general-purpose, non-latching, SPST-NO (1 Form A) relay with a 24VDC coil voltage and a switching voltage of up to 250VAC.

  • Manufacturer: Panasonic Electric Works
  • Series: ALFG
  • Type: General-purpose, Non-latching
  • Contact Form: SPST-NO (1 Form A)
  • Coil Voltage: 24VDC
  • Switching Voltage: Up to 250VAC
  • Contact Rating: 33A
  • Coil Resistance: 410 Ohms
  • Coil Current: 58.6 mA
  • Operate Time: 20 ms
  • Release Time: 10 ms
  • Part: ALFG2PF241
  • Contact Material: Silver tin oxide (AgSnO)
  • Mounting Style: Through-hole
  • Temperature Range: -40°C to 60°C
  • ECCN: EAR99
  • Packaging: Bulk
  • Standard Package: 50
