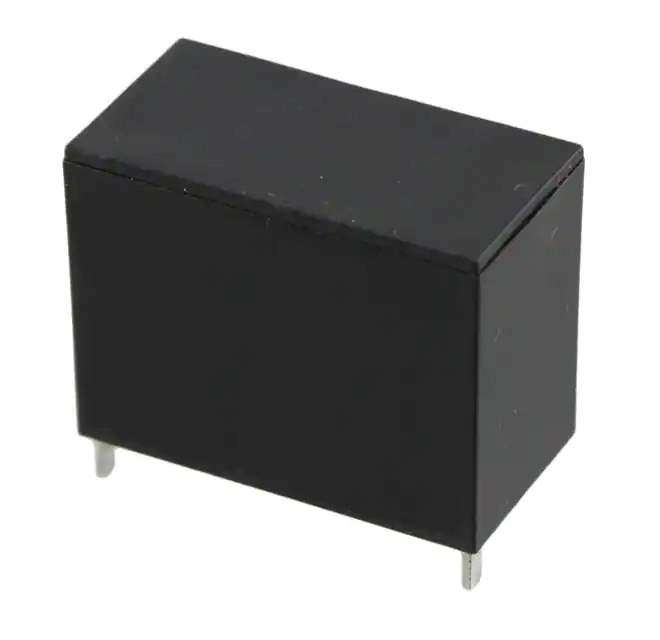

ALFG2PF121 Real Image
Same model may have multiple batches, images only for reference.

ALFG2PF121

Part No ALFG2PF121
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 33A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series ALFG
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 33 A
Switching Voltage 250VAC - Max
Coil Current 117 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class F
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 103 Ohms
Base Product Number ALFG2P
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 860881-ALFG2PF121
Ultra Librarian 3D Model Ultra Librarian ALFG2PF121 CAD Model

Description

The ALFG2PF121 is a power relay from Panasonic's ALFG series. ALFG2PF121 is a product from Panasonic.

  • Termination Style: PC Pin
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Resistance: 103 Ohms
  • Coil Current: 117 mA
  • Operate Time: 20 ms
  • Release Time: 10 ms
  • Coil Voltage: 12VDC
  • Contact Rating: 33 A
  • Switching Voltage: 250VAC (max)
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 60°C
  • Product Status: Active
  • Coil Insulation: Class F
