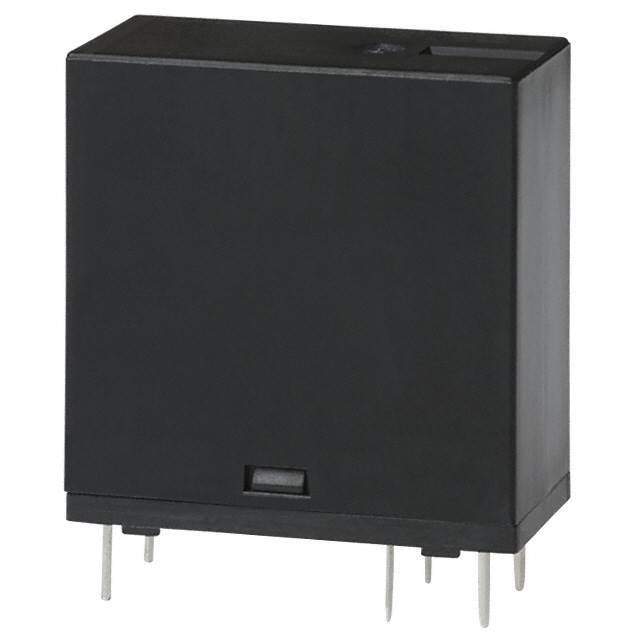

ALA2F24 Real Image
Same model may have multiple batches, images only for reference.

ALA2F24

Part No ALA2F24
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 3A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 22.1mA
Coil Voltage 24VDC
Contact Form DPST (2 Form A)
Contact Rating (Current) 3A
Switching Voltage 125VAC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 15ms
Release Time 15ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 530 mW
Coil Resistance 1.09 kOhms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 078009-ALA2F24
Popularity Medium
Supply and Demand Status Balance
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian ALA2F24 CAD Model

Description

ALA2F24

The ALA2F24 offers superior functionality for diverse electronics projects. It is engineered for both efficiency and reliability.

  • Applications and Projects:
    • Smart Home Devices
    • Renewable Energy Systems
    • Automated Test Equipment
  • Features and Benefits:
    • Efficient Performance
    • Long Lifespan
    • User-Friendly Interface
    • Flexible Integration
  • Additional Details:
    • This component is designed to support sustainable technologies.
    • Provides seamless integration with existing infrastructure.
