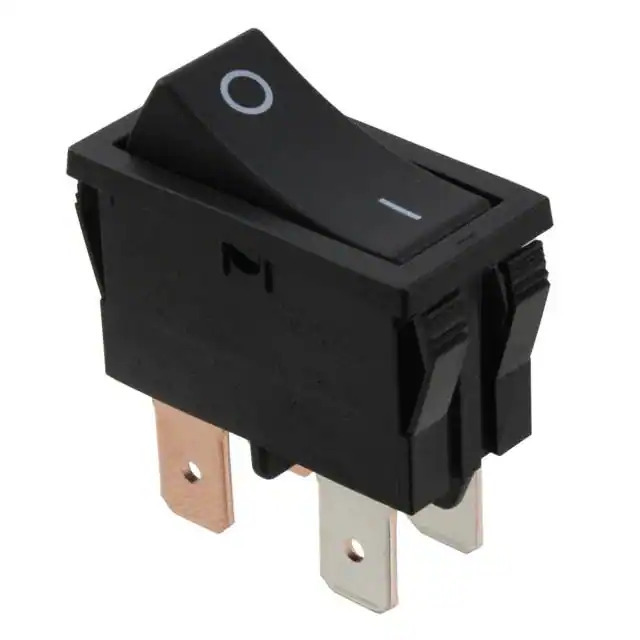

AJ8202BTVF Panasonic
Same model may have multiple batches, images only for reference.

AJ8202BTVF

Part No AJ8202BTVF
Manufacturer Panasonic
Catalog Rocker Switches
Description SWITCH ROCKER DPST 16A 250V / Rocker Switch DPST 16A (AC) 250 V Panel Mount, Snap-In
Datasheet
AJ8202BTVF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Rocker Switches
Mfr Panasonic Electric Works
Series AJ8
Package Bulk
Product Status Active
Mounting Type Panel Mount, Snap-In
Circuit DPST
Switch Function On-Off
Current Rating (Amps) 16A (AC)
Voltage Rating - AC 250 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking O -
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Quick Connect - 0.250" (6.3mm)
Ingress Protection -
Features -
Panel Cutout Dimensions Rectangular - 28.20mm x 12.90mm
Temperature Range - Operating -25°C ~ 85°C
Mechanical Life 50,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number AJ8202
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1355747-AJ8202BTVF
Ultra Librarian 3D Model Ultra Librarian AJ8202BTVF CAD Model

Description

The Panasonic Electric Works AJ8 series rocker switches are designed for panel mount applications.

  • Series: AJ8
  • Mounting: Panel Mount
  • Switch Function: DPST
  • Current Rating: 16A (AC)
  • Voltage Rating: 250VAC
  • Actuator Type: Concave (Curved)
  • Actuator/Cap Color: Black
  • Mechanical Life: 50,000 cycles
  • Electrical Life: 10,000 cycles
  • Panel Cutout Dimensions: Rectangular - 28.20mm x 12.90mm
  • Termination Style: Quick Connect 0.250" (6.3mm)
  • ECCN Rating: Rated according to ECCN standards
  • Manufacturer: Panasonic Electric Works
