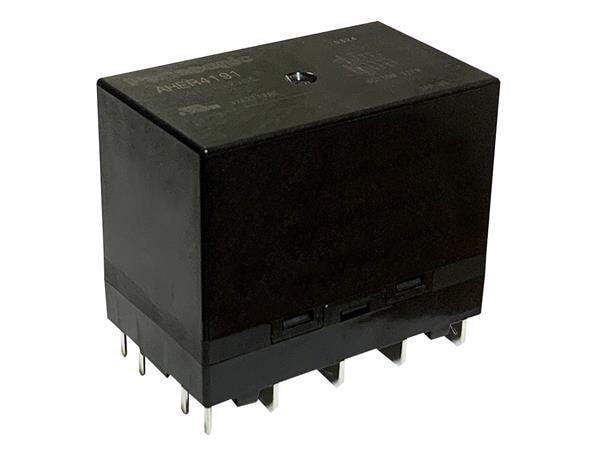

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Panasonic
Product Power Relays
Coil Voltage 12 VDC
Relay Contact Form 4 Form A, 1 Form B
Contact Termination Solder Lug
Mounting Style PCB Mount
Coil Resistance 36 Ohms
Coil Current 333 mA
Contact Material Silver Tin
Series HE-R
Length 58 mm
Width 35 mm
Height 47 mm
Packaging Tray
Brand Panasonic Industrial Devices
Product Type General Purpose Relays
Standard Pack Qty 50
Subcategory Relays
Ultra Librarian 3D Model Ultra Librarian AHER4191 CAD Model
