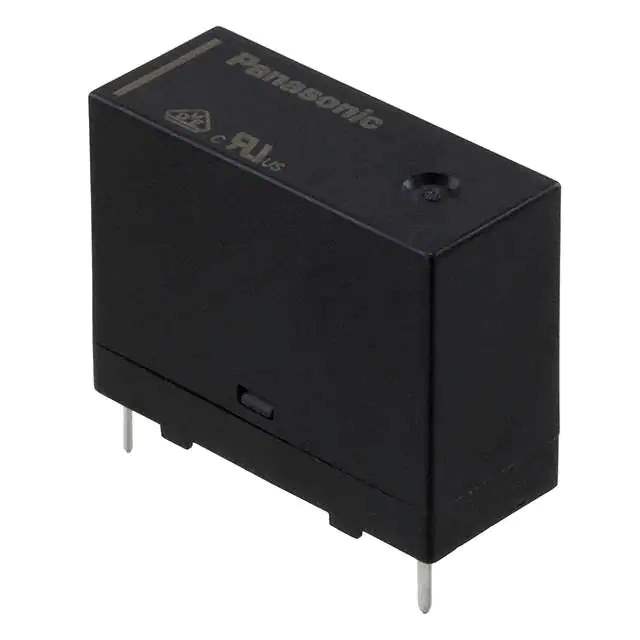

ADW1203HLW Real Image
Same model may have multiple batches, images only for reference.

ADW1203HLW

Part No ADW1203HLW
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 3V / General Purpose Relay SPST-NO (1 Form A) 3VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series DW-H
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 3VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 277VAC - Max
Coil Current 133 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 2.4 VDC
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 22.5 Ohms
Base Product Number ADW1203
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 911134-ADW1203HLW
Ultra Librarian 3D Model Ultra Librarian ADW1203HLW CAD Model

Description

The ADW1203HLW is a power relay from Panasonic's DW-H series. It features a PC pin termination style and a SPST-NO (1 Form A) contact form.

  • Termination Style: PC Pin
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Contact Rating: 16 A
  • Coil Voltage: 3VDC
  • Coil Resistance: 22.5 Ohms
  • Switching Voltage: 277VAC
  • Coil Type: Latching, Dual Coil
  • Operate Time: 15 ms
  • Release Time: 15 ms
  • Seal Rating: Sealed with flux protection
  • Temperature Range: -40°C to 85°C
