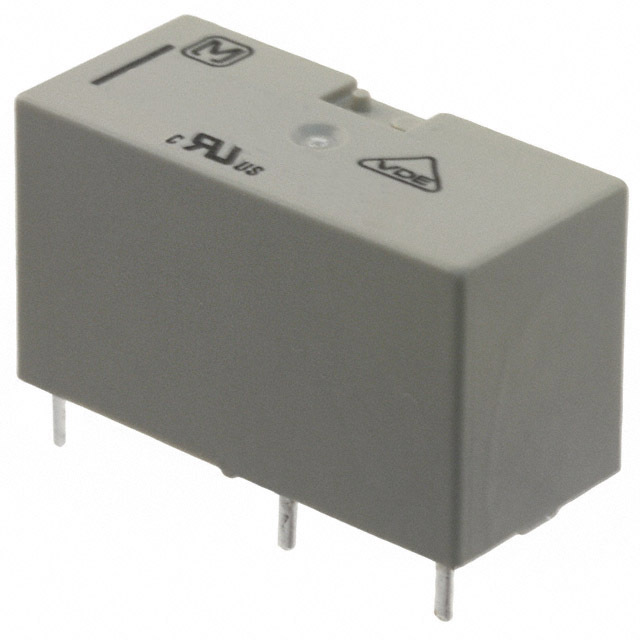

ADJ51005 Panasonic
Same model may have multiple batches, images only for reference.

ADJ51005

Part No ADJ51005
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 10A 5V / General Purpose Relay DPDT (2 Form C) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series ADJ
Package Box
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC - Max
Coil Current 29.9 mA
Coil Type Latching, Single Coil
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 3.5 VDC
Must Release Voltage 3.5 VDC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO), Gold (Au)
Relay Type General Purpose
Coil Resistance 167 Ohms
Base Product Number ADJ510
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 557831-ADJ51005
Ultra Librarian 3D Model Ultra Librarian ADJ51005 CAD Model

Description

The ADJ51005 is a power relay from Panasonic's ADJ series.

  • Termination Style: PC pin
  • Package: Box
  • Contact Form: DPDT (2 Form C)
  • Contact Material: Silver tin oxide (AgSnO) and gold (Au)
  • Coil Voltage: 5VDC
  • Coil Resistance: 167 Ohms
  • Contact Rating: 10 A
  • Switching Voltage: Up to 250VAC
  • Relay Type: Latching type with a single coil
  • Protection Rating: Sealed and flux protection
  • Operating Temperature Range: -40°C to 70°C
  • Product Status: Active and is currently in production
