6SVPS470M Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel
Type Polymer
Capacitance 470μF
Tolerance ±20%
Voltage - Rated 6.3V
ESR (Equivalent Series Resistance) 20mOhm
Lifetime at Temp. 5000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current at Low Frequency 206.5mA at 120Hz
Ripple Current at High Frequency 4.13A at 100kHz
Parts Dimension 0.394" Dia (10.00mm)
Height - Seated (Maximum) 0.315" (8.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129703-6SVPS470M
Manufacturer Homepage www.panasonic.com/industrial/
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 6SVPS470M CAD Model

Description

The Panasonic Electronic Components 470μF Polymer Capacitor is a general-purpose capacitor that is widely used in electronic devices.

  • Capacitance: 470μF
  • Voltage Rating: 6.3V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 20mOhm
  • Ripple Current: 206.5mA @ low frequency and 4.13A @ high frequency
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Height: 0.315" (8.00mm)
  • Lifetime: 5000 Hrs @ 105°C
  • Temperature Range: -55°C ~ 105°C
  • Supply and Demand Status: Balanced
  • Package: Radial, can - SMD

You May Also Be Interested in

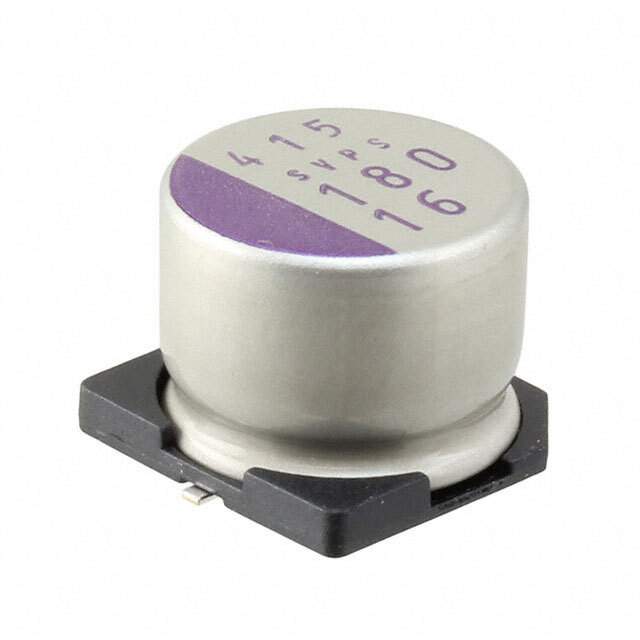

16SVPF180M Real Image
