Same model may have multiple batches, images only for reference.

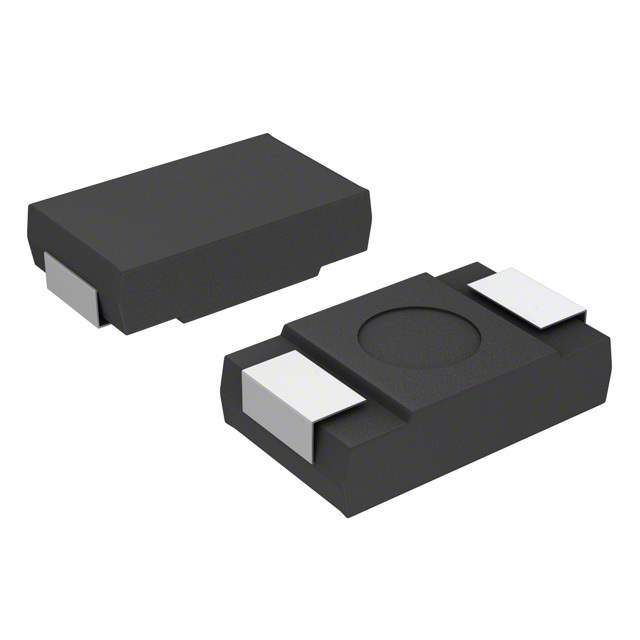

SPSX391M02R Real Image
Same model may have multiple batches, images only for reference.

SPSX391M02R

Part No SPSX391M02R
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum - Polymer Capacitors
Datasheet
SPSX391M02R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SPSX
Package Tape & Reel (TR)
Product Status Obsolete
Type Polymer
Capacitance 390 µF
Tolerance ±20%
Voltage - Rated 2 V
ESR (Equivalent Series Resistance) 9mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 3 A @ 100 kHz
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.083" (2.10mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
Standard Package 3,500
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1308438-SPSX391M02R
Ultra Librarian 3D Model Ultra Librarian SPSX391M02R CAD Model

Description

The Cornell Dubilier Electronics (CDE) SPSX series is a polymer aluminum capacitor designed for general purpose applications.

  • Capacitance: 390 µF
  • Voltage Rating: 2 V
  • ESR (Equivalent Series Resistance): 9mOhm
  • Ripple Current: 3 A @ 100 kHz
  • Package/Case: 2917 (7343 Metric)
  • Mounting Type: SMD (SMT)
  • Lifetime: 1000 hours @ 105°C
  • Operating Temperature Range: -40°C to 105°C
  • Surface Mount Land Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
