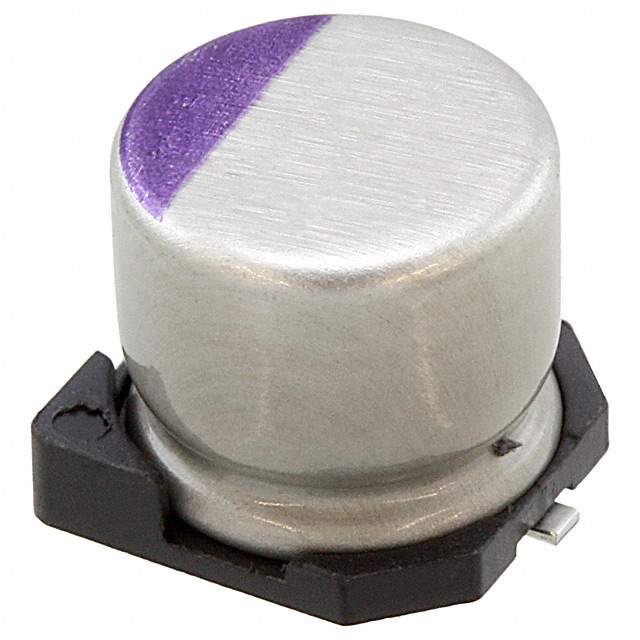

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel
Type Polymer
Capacitance 220μF
Tolerance ±20%
Voltage - Rated 6.3V
ESR (Equivalent Series Resistance) 27mOhm
Lifetime at Temp. 2000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current at Low Frequency 116mA at 120Hz
Ripple Current at High Frequency 2.32A at 100kHz
Parts Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.236" (6.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129701-6SVPC220M
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 6SVPC220M CAD Model

Description

The Panasonic Electronic Components Polymer Capacitor is a high-quality, general-purpose component designed for use in various electronic applications.

  • Type: Polymer Capacitor
  • Application: General-purpose
  • Capacitance: 220μF
  • Voltage Rating: 6.3V
  • Ideal for: Circuits that require stable and reliable power supply
  • Tolerance: ±20%
  • ESR: 27mOhm
  • Mounting Type: Surface-mountable
  • Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Operating Temperature Range: -55°C ~ 105°C
  • Lifetime: 2000 Hrs @ 105°C
  • Ripple Current @ Low Frequency: 116mA @ 120Hz
  • Ripple Current @ High Frequency: 2.32A @ 100kHz
  • Package: Reel
  • Height: 0.236" (6.00mm)
