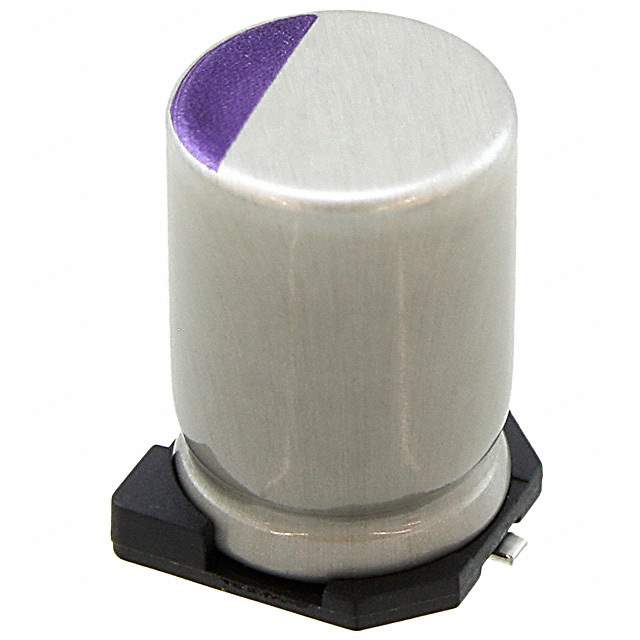

Same model may have multiple batches, images only for reference.

4SVPC1500M

Name: 4SVPC1500M
Brand: Panasonic
SKU: 1200742
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	4SVPC1500M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 1500UF 20% 4V SMD / 1500 µF 4 V Aluminum - Polymer Capacitors Radial, Can - SMD 12mOhm 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SVPC
Package	Tape & Reel
Type	Polymer
Capacitance	1500 µF
Tolerance	±20%
Voltage - Rated	4 V
ESR (Equivalent Series Resistance)	12mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Ripple Current @ Low Frequency	235 mA @ 120 Hz
Ripple Current @ High Frequency	4.7 A @ 100 kHz
Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Base Product Number	4SVPC
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	P16572TR,P16572CT,P16572DKR
Standard Package	400
Win Source Part Number	1200742-4SVPC1500M
Ultra Librarian 3D Model	Ultra Librarian 4SVPC1500M CAD Model

Description

This electronic component is a capacitor from the OS-CON™, SVPC series by Panasonic Electronic Components.

Series: OS-CON™, SVPC
Win Source Part Number: 1200742-4SVPC1500M
Type: Polymer
Capacitance: 1500 µF
Tolerance: ±20%
Voltage Rating: 4 V
ESR: 12mOhm
Ripple Current (Low Frequency): 235 mA @ 120 Hz
Ripple Current (High Frequency): 4.7 A @ 100 kHz
Lifetime: 2000 Hrs @ 105°C
Package/Case: Radial, can - SMD
Mounting: SMD (SMT)
