Same model may have multiple batches, images only for reference.

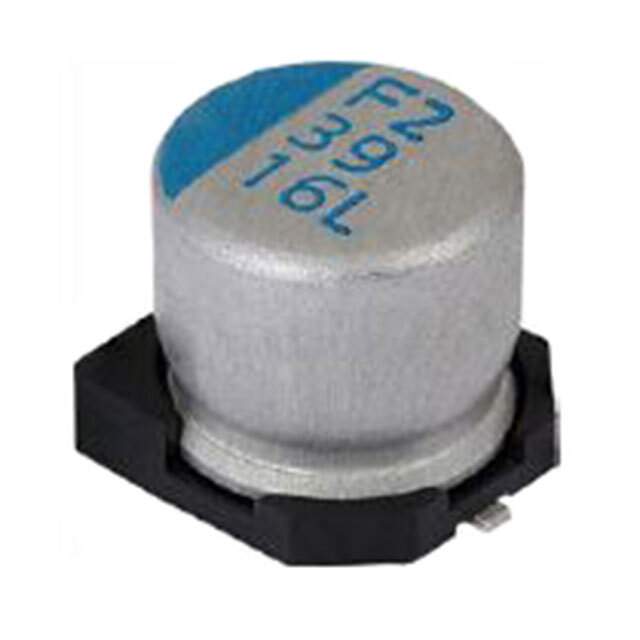

MAL218197203E3 Real Image
Same model may have multiple batches, images only for reference.

MAL218197203E3

Part No MAL218197203E3
Manufacturer Vishay
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 390UF 20% 20V SMD  /  390 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet
MAL218197203E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series 181 CPL
Package Tape & Reel
Type Polymer
Capacitance 390 µF
Tolerance ±20%
Voltage - Rated 20 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 4.95 A @ 100 kHz
Impedance 14 mOhms
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Surface Mount Land Size 0.331" L x 0.331" W (8.40mm x 8.40mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.22.0020
Other Names 4774PHDKR,4774PHTR,4774PHCT
Standard Package 400
Win Source Part Number 1216440-MAL218197203E3
Ultra Librarian 3D Model Ultra Librarian MAL218197203E3 CAD Model

Description

The MAL218197203E3 from Vishay Beyschlag/Draloric/BC Components is a radial, can-SMD aluminum-polymer capacitor.

  • Capacitance: 390 µF
  • Voltage Rating: 20V
  • Packaging: Tape and Reel
  • Standard Package: 400
  • Tolerance: ±20%
  • Impedance: 14 mOhms
  • Lifetime: 5000 Hrs @ 105°C
  • Ripple Current: 4.95 A @ 100 kHz
  • Height: 0.472" (12.00mm)
  • Dimension: 0.315" Dia (8.00mm)
