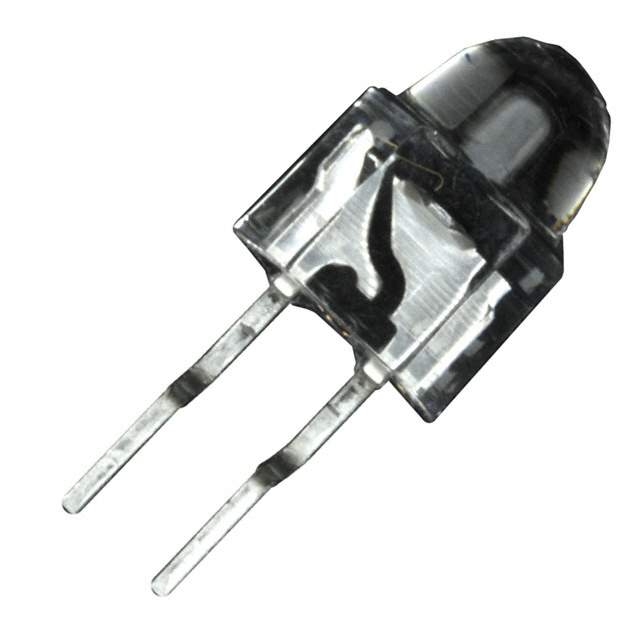

SFH 3500-Z Real Image
Same model may have multiple batches, images only for reference.

SFH 3500-Z

Part No SFH 3500-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR NPN SMD RADIAL / Phototransistors 830nm Side View Radial
Datasheet
SFH 3500-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr ams-OSRAM USA Inc.
Package Cut Tape (CT)
Product Status Obsolete
Voltage - Collector Emitter Breakdown (Max) 35 V
Current - Collector (Ic) (Max) 50 mA
Current - Dark (Id) (Max) 200 nA
Wavelength 830nm
Viewing Angle 26°
Power - Max 150 mW
Mounting SMD (SMT)
Orientation Side View
Package / Case Radial
Other Names 475-1453-6INACTIVE,475-1453-1,475-1453-2,SFH3500Z,475-1453,475-1453-6,Q65110A2636,475-1453,475-1453-6,SFH 3500-Z
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 1234951-SFH 3500-Z
Ultra Librarian 3D Model Ultra Librarian SFH 3500-Z CAD Model

Description

The SFH 3500-Z from ams-OSRAM USA Inc. is an obsolete electronic component that is perfect for various applications.

  • Component Type: Optical sensor - phototransistor
  • Viewing Angle: 26 degrees
  • Wavelength: 830nm
