Same model may have multiple batches, images only for reference.

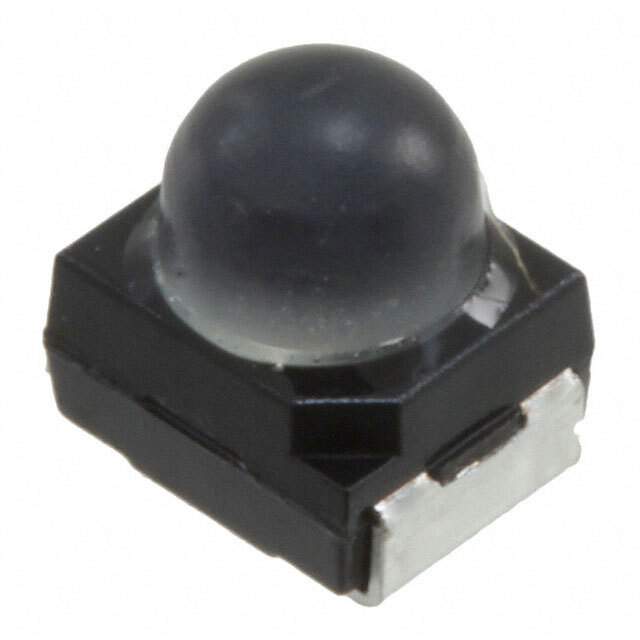

LR T66F-AABB-1-1-Z Real Image
Same model may have multiple batches, images only for reference.

LR T66F-AABB-1-1-Z

Part No LR T66F-AABB-1-1-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Indication - Discrete
Description LED RED CLEAR 2PLCC SMD / Red 625nm LED Indication - Discrete 1.95V 2-PLCC
Datasheet
LR T66F-AABB-1-1-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr ams-OSRAM USA Inc.
Series TOPLED® Black
Package Tape & Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 1960mcd
Lens Style Round with Domed Top
Lens Size 2.60mm Dia
Voltage - Forward (Vf) (Typ) 1.95V
Current - Test 20mA
Viewing Angle 55°
Mounting SMD (SMT)
Wavelength - Dominant 625nm
Wavelength - Peak 634nm
Package / Case 2-PLCC
Supplier Device Package 2-PLCC
Dimension 3.20mm L x 2.80mm W
Height (Max) 3.50mm
Base Product Number LRT66F
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names LRT66FAABB11,LR T66F-AABB-1-1,LRT66F-AABB-1-1-Z,LR T66F-AABB-1-1-Z-ND,LRT66FAABB11Z,475-3428-2,Q65111A1792,475-3428-1,LRT66F-AABB-1-1,475-3428-6
Standard Package 2,000
Win Source Part Number 1070865-LR T66F-AABB-1-1-Z
Ultra Librarian 3D Model Ultra Librarian LR T66F-AABB-1-1-Z CAD Model

Description

The OSRAM Opto Semiconductors Inc. LR T66F-AABB-1-1-Z is a high-performance red LED designed for use in various lighting applications.

  • Voltage-Forward: 1.95 V
  • Current-Test: 20 mA
  • Viewing Angle: 55 degrees
  • Millicandela Rating: 1960mcd
  • Mounting Type: Surface Mount
  • RoHS Compliant: Yes
  • Radiation Hardening: No
  • Category: Optoelectronics LED Indication - Discrete
  • Packaging: Tape and Reel
