Same model may have multiple batches, images only for reference.

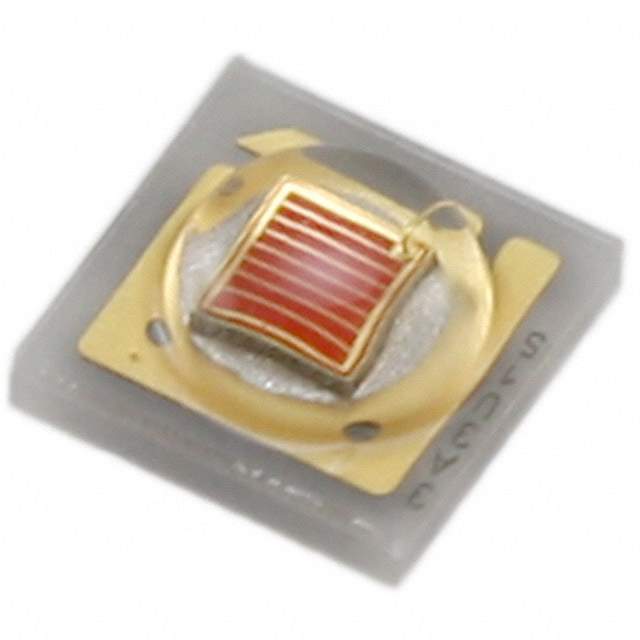

LH CPDP-1T3T-1-Z Real Image
Same model may have multiple batches, images only for reference.

LH CPDP-1T3T-1-Z

Part No LH CPDP-1T3T-1-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - Color
Description LED OSLON SSL RED 645NM SMD / LED Lighting Color series Red 645nm (Typ) 1212 (3030 Metric)
Datasheet
LH CPDP-1T3T-1-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - Color
Mfr ams-OSRAM USA Inc.
Series OSLON SSL
Package Tape & Reel
Product Status Obsolete
Color Red
Wavelength 645nm (Typ)
Current - Test 400mA
Voltage - Forward (Vf) (Typ) 2.15V
Current - Max 1A
Luminous Flux @ Current/Temperature 340mW (280mW ~ 400mW)
Temperature - Test 25°C
Viewing Angle 150°
Mounting SMD (SMT)
Package / Case 1212 (3030 Metric)
Supplier Device Package SMD
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.062" (1.58mm)
Thermal Resistance of Package 7°C/W
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names LHCPDP1T3T1Z,475-2930-1,475-2930-2,475-2930-6,Q65111A0334
Standard Package 600
Win Source Part Number 1069688-LH CPDP-1T3T-1-Z
Ultra Librarian 3D Model Ultra Librarian LH CPDP-1T3T-1-Z CAD Model

Description

The LHCPDP1T3T1Z is a red LED lighting component from the OSLON SSL series.

  • Viewing Angle: 150 degrees
  • Forward Voltage: 2.15V
  • Package: Tape & reel
  • Thermal Resistance: 7 degrees Celsius per watt
  • Mounting: SMD mounted
  • Current Test: 400mA
  • Wavelength: 645nm
  • Luminous Flux: 340mW
  • Package/Case: 1212 (3030 metric)
  • Supplier Device Package: SMD
  • Status: Obsolete
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8541.41.0000
  • Manufacturer: ams-OSRAM USA Inc.
