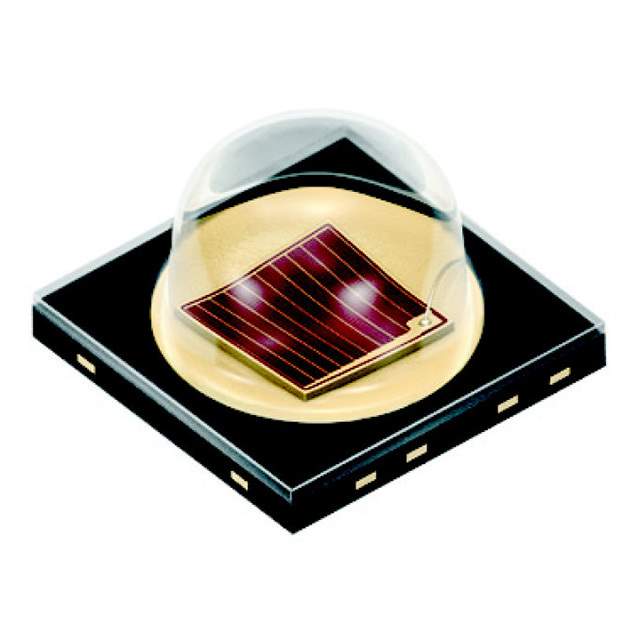

Same model may have multiple batches, images only for reference.

LA H9GP-JYKZ-24-H29C-350-R18-Z

Name: LA H9GP-JYKZ-24-H29C-350-R18-Z
Brand: OSRAM Opto Semiconductors Inc.
SKU: 1068701
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	LA H9GP-JYKZ-24-H29C-350-R18-Z
Manufacturer	OSRAM Opto Semiconductors Inc.
Catalog	LED Lighting - Color
Description	LED OSLON AMBER 617NM 3SMD / LED Lighting Color series Amber 617nm (612nm ~ 624nm) 3-SMD, No Lead
Datasheet	LA H9GP-JYKZ-24-H29C-350-R18-Z Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Lighting - Color
Mfr	ams-OSRAM USA Inc.
Series	OSLON® Black
Package	Tape & Reel
Color	Amber
Wavelength	617nm (612nm ~ 624nm)
Current - Test	350mA
Voltage - Forward (Vf) (Typ)	2.2V
Lumens/Watt @ Current - Test	106 lm/W
Current - Max	1A
Luminous Flux @ Current/Temperature	82lm (52lm ~ 112lm)
Temperature - Test	25°C
Viewing Angle	90°
Mounting	SMD (SMT)
Package / Case	3-SMD, No Lead
Supplier Device Package	3-SMD
Dimension	0.148" L x 0.148" W (3.75mm x 3.75mm)
Height - Seated (Max)	0.095" (2.41mm)
Base Product Number	LAH9GP
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Other Names	475-3729,Q65112A3113,475-LAH9GP-JYKZ-24-H29C-350-R18-ZDKR,475-3729-ND,LA H9GP-JYKZ-24-H29C,475-LAH9GP-JYKZ-24-H29C-350-R18-ZTR,475-LAH9GP-JYKZ-24-H29C-350-R18-ZCT,LAH9GP-JYKZ-24-H29C-350-R18-Z-ND
Standard Package	600
Win Source Part Number	1068701-LA H9GP-JYKZ-24-H29C-350-R18-Z
Ultra Librarian 3D Model	Ultra Librarian LA H9GP-JYKZ-24-H29C-350-R18-Z CAD Model

Alternative Products

Description

The OSLON® Black Amber LED Lighting - Color is a high-quality electronic component that features a viewing angle of 90° and a forward voltage of 2.2V. OSLON® Black Amber LED is made by ams-OSRAM USA Inc.

Viewing Angle: 90°
Forward Voltage: 2.2V
Maximum Height: 0.095" (2.41mm)
Mounting: SMD (SMT)
Standard Pieces: 600
Current Test: 350mA
Wavelength: 617nm (612nm ~ 624nm)
Luminous Flux: 82lm (52lm ~ 112lm) @ current/temperature
Lumens/Watt: 106 lm/W @ current - test
Package/Case: 3-SMD, No Lead
Supplier Device Package: 3-SMD
