Same model may have multiple batches, images only for reference.

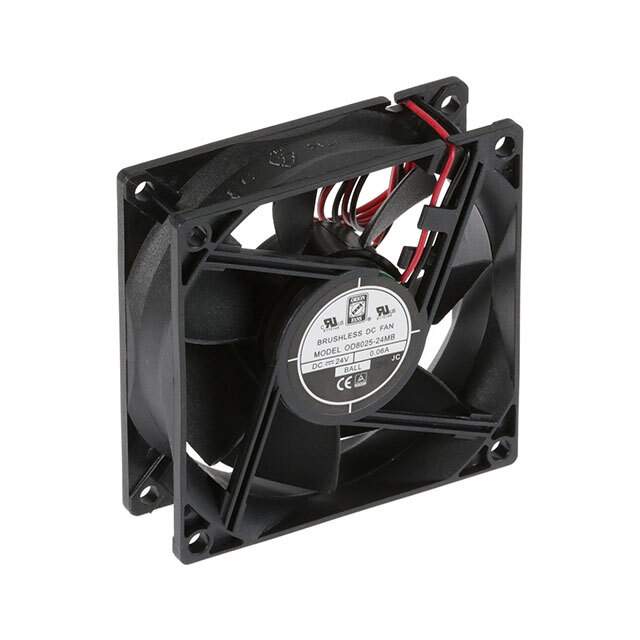

OD8025-24MB Real Image
Same model may have multiple batches, images only for reference.

OD8025-24MB

Part No OD8025-24MB
Manufacturer Orion Fans
Catalog DC Fans
Description FAN AXIAL 80X25MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 31.0 CFM (0.868m³/min) 2 Wire Leads
Datasheet
OD8025-24MB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Orion Fans
Series OD8025
Package Box
Voltage - Rated 24VDC
Dimension Square - 80mm L x 80mm H
Width 25.00mm
Air Flow 31.0 CFM (0.868m³/min)
Static Pressure 0.100 in H2O (24.9 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Auto Restart
Noise 28.0dB
Power (Watts) 0.96 W
RPM 2500 RPM
Termination 2 Wire Leads
Temperature Range - Operating -4 ~ 167°F (-20 ~ 75°C)
Approval Agency cURus, TUV
Weight 0.191 lb (86.64 g)
Current Rating (Amps) 0.060A
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Lifetime @ Temp. 65000 Hrs @ 45°C
Base Product Number OD8025
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Other Names 1053-1264,OD8025-24MBX,OD802524MB
Standard Package 1
Win Source Part Number 1231992-OD8025-24MB
Ultra Librarian 3D Model Ultra Librarian OD8025-24MB CAD Model

Description

The OD8025-24MB is a DC brushless fan from Orion Fans.

  • Feature: Auto Restart
  • Termination: 2 Wire Leads
  • Package: Box
  • Voltage Rated: 24VDC
  • Power: 0.96W
  • Lifetime: 65000 Hours @ 45°C
  • Width: 25.00mm
  • Air Flow: 31.0 CFM (0.868m³/min)
  • Static Pressure: 0.100 in H2O (24.9 Pa)
  • Frame and Blade Material: Polybutylene Terephthalate (PBT)
  • Operating Temperature: -4 ~ 167°F (-20 ~ 75°C)
  • Dimension: Square with 80mm L x 80mm H
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Application: DC Brushless Fans (BLDC)
