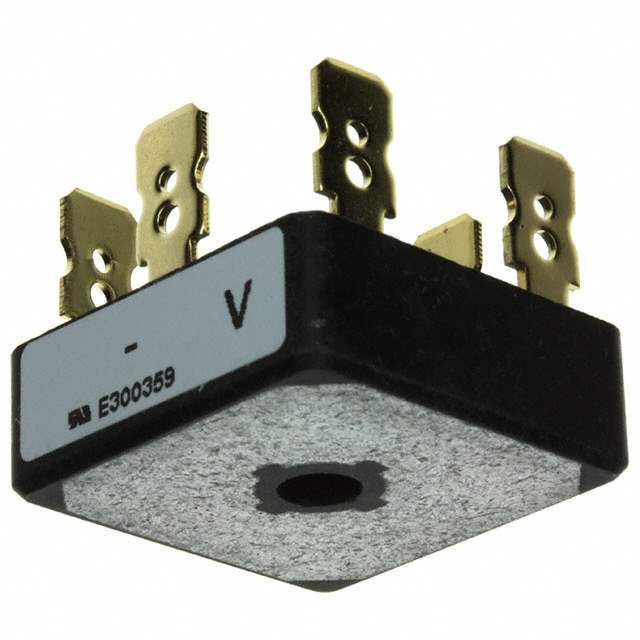

VS-26MT140 Real Image
Same model may have multiple batches, images only for reference.

VS-26MT140

Part No VS-26MT140
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 3P 1.4KV 25A D-63 / Bridge Rectifier Three Phase Standard 1.4 kV QC Terminal D-63
Datasheet
VS-26MT140 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Vishay
Package Bulk
Product Status Active
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Max) 1.4 kV
Current - Average Rectified (Io) 25 A
Current - Reverse Leakage @ Vr 100 µA @ 1400 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type QC Terminal
Package / Case 5-Square, D-63
Supplier Device Package D-63
Base Product Number 26MT140
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 847806-VS-26MT140
Ultra Librarian 3D Model Ultra Librarian VS-26MT140 CAD Model

Description

The 847806-VS-26MT140 is a three-phase bridge rectifier diode from Vishay.

  • Category: Bridge Rectifiers
  • Average Rectified Current: 25A
  • Peak Reverse Voltage: 1.4kV
  • Current Leakage @ 1400V: 100μA
  • Mounting Type: QC Terminals
  • Packaging: Bulk
  • Standard Package Quantity: 20 pcs
  • Temperature Range: -55°C to 150°C
  • Product Status: Active
