ON Semiconductor STK672-440BN-E Stepper Motor Driver

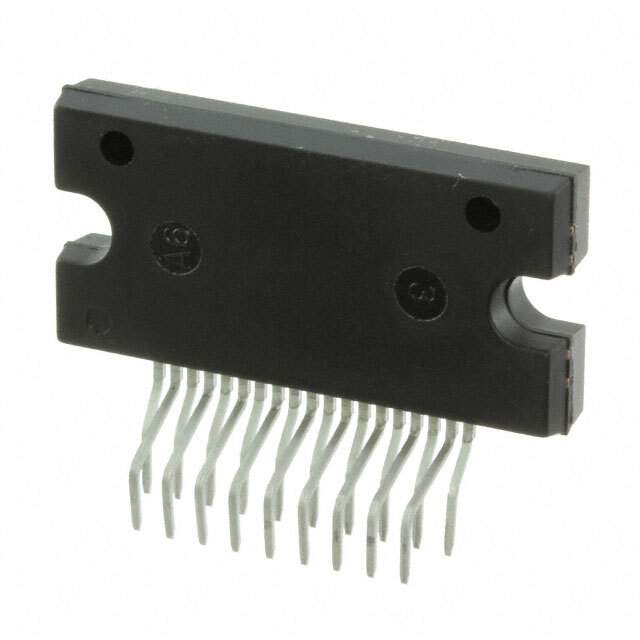

The STK672-440BN-E is a highly efficient, unipolar stepper motor driver module produced by ON Semiconductor. This sophisticated IC (Integrated Circuit) is designed to drive a two-phase bipolar stepper motor in various stepping modes. The driver is capable of controlling a stepper motor through a simple parallel interface.

The STK672-440BN-E operates on a supply voltage ranging from 10V to 45V, making it versatile for a wide array of applications. It can deliver an output current of up to 1.5A per phase, which is suitable for driving small to medium-sized stepper motors. Additionally, the driver features a built-in micro-stepping controller that can be configured for full-step, half-step, quarter-step, or eighth-step, providing precise control over motor movements.

One of the key advantages of the STK672-440BN-E is its integrated chopper drive circuit, which regulates the current in the motor to maintain efficient operation and reduce heat generation. This feature not only extends the life of the motor but also enhances performance by enabling smooth and accurate control.

Safety is a priority in the design of the STK672-440BN-E. It includes thermal shutdown and overcurrent protection to prevent damage to the IC and the motor in the event of a fault. The module also boasts a low on-resistance (Ron) of the output stage, which contributes to lower power dissipation and improved efficiency.

The compact design of the STK672-440BN-E is ideal for applications where space is at a premium. It is commonly used in office automation machines, factory automation systems, and robotics due to its reliability and performance. Furthermore, the device comes in a multiwatt package, which facilitates heat dissipation and simplifies the PCB design process.

Overall, the STK672-440BN-E from ON Semiconductor is an excellent choice for designers looking for a robust, reliable, and easy-to-use stepper motor driver. Its combination of performance, protection features, and compact size make it an ideal component for a wide range of precision motion control applications.
