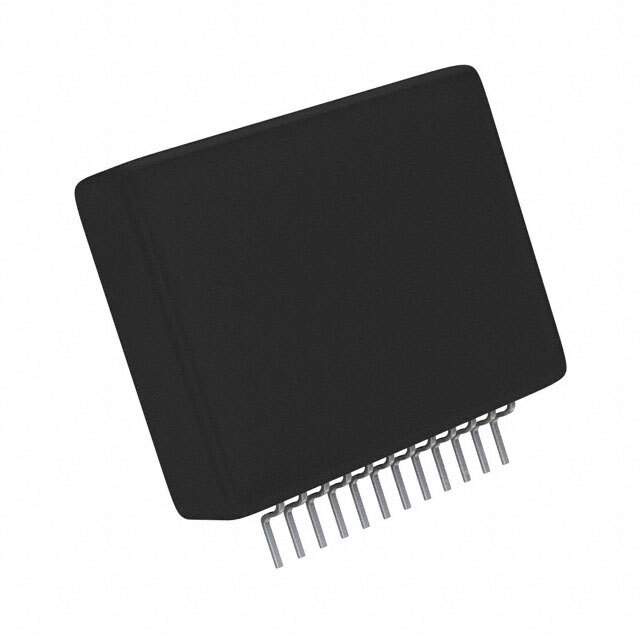

ON Semiconductor STK672-210 Stepper Motor Driver

The STK672-210 is a highly integrated, high-performance stepper motor driver module manufactured by ON Semiconductor. This unipolar stepper motor driver is designed to deliver efficient, precise, and reliable control for a wide range of motor-driven applications. The STK672-210 is part of ON Semiconductor's extensive lineup of motor control solutions, providing designers with a compact and robust driver capable of driving a two-phase stepper motor.

The module is built on a hybrid IC technology, which combines the advantages of power FETs and bipolar transistors, ensuring high-power handling and excellent thermal characteristics. The STK672-210 is capable of output currents up to 2A and operating voltages ranging from 10V to 42V, making it suitable for a variety of stepper motor sizes and performance requirements.

This driver incorporates a built-in microstepping controller, which allows for smooth and precise motor rotation. The microstepping feature can significantly reduce the stepping angle of the motor, resulting in higher resolution positioning and less mechanical vibration. The STK672-210 supports various microstepping modes, including full-step, half-step, and smaller microsteps, providing designers with flexibility in application tuning and performance optimization.

For ease of integration, the STK672-210 offers a simple step and direction interface that can be easily controlled by a microcontroller or any digital logic device. The module also includes various protective features such as thermal shutdown and overcurrent protection, which safeguard the motor and the driver from potential damage due to overloading or overheating conditions.

The compact design of the STK672-210, combined with its high integration level, minimizes the need for external components and reduces the overall footprint of the motor control solution on the PCB. This makes the STK672-210 an ideal choice for applications such as office automation machines, 3D printers, surveillance cameras, and other precision motion control systems where space is at a premium and high reliability is required.

Overall, the ON Semiconductor STK672-210 stepper motor driver is a versatile and reliable choice for designers looking to implement advanced motor control in their applications with minimal design complexity and high performance.
