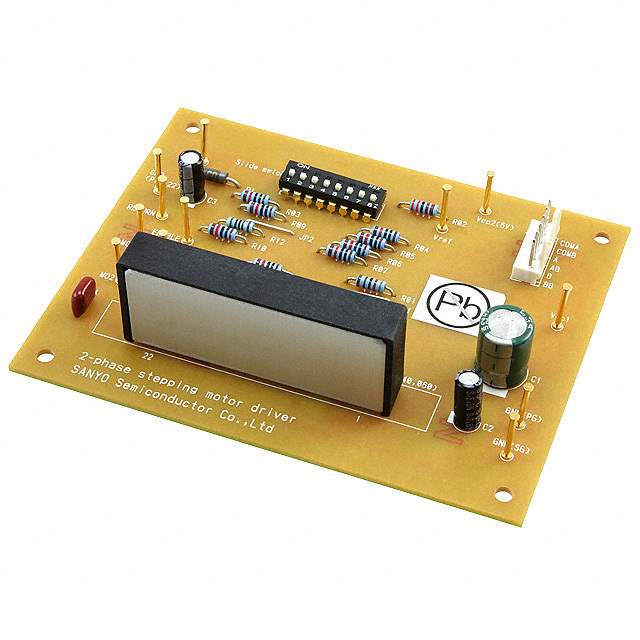

The STK672-040GEVB from ON Semiconductor is a comprehensive evaluation board designed to showcase the capabilities of the STK672-040, a highly-efficient, 2-phase stepping motor driver. This evaluation board is an excellent tool for engineers and hobbyists alike to explore the features of the STK672-040 and develop applications that require precise motor control.

Key Features

• Integrated 2-Phase Stepping Motor Driver: The STK672-040 chip is a unipolar 2-phase stepping motor driver with a built-in microstepping controller and a fixed off-time current regulator that operates in mixed, fast, or slow current-decay modes.
• Microstepping Support: The board facilitates microstepping control, allowing for smoother motor operation and more precise positioning, which is essential for applications such as 3D printers, CNC machines, and robotics.
• On-Board Potentiometer: An adjustable potentiometer is included for setting the motor current, enabling users to easily tune the performance according to the specific requirements of their motor.
• LED Indicators: Equipped with LED indicators to provide visual feedback on the operating status and error conditions, simplifying the troubleshooting process.
• Heat Sink Included: The evaluation board comes with a heat sink to ensure adequate heat dissipation during operation, thereby improving the reliability and longevity of the motor driver.

Applications

The STK672-040GEVB is versatile and can be used in a wide range of applications that require precise motor control, such as:

• Automated equipment
• Office automation machines
• Industrial machinery
• Medical and healthcare devices
• Robotics

Technical Specifications

The evaluation board supports a supply voltage ranging from 10V to 42V, suitable for various stepper motors. The onboard STK672-040 driver can handle a maximum output current of 2A, depending on the operating conditions and heat dissipation efficiency.

Conclusion

The STK672-040GEVB is an excellent development platform for those looking to take advantage of ON Semiconductor's STK672-040 stepping motor driver. With its robust design and user-friendly features, it simplifies the process of integrating stepper motor control into a wide array of projects and products.
