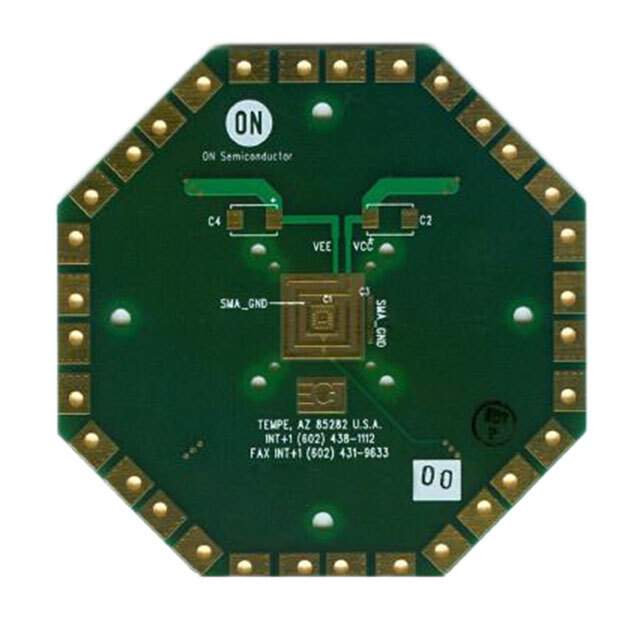

The ON Semiconductor NB6L72MNGEVB is a high-performance, low-voltage differential signaling (LVDS) clock/data fanout buffer designed to meet the stringent requirements of today's high-speed data communication systems and signal distribution applications. This device is part of ON Semiconductor's extensive portfolio of clock generation and distribution products, offering a blend of low power consumption, minimal additive phase noise, and high jitter tolerance.

Key Features

• High-Speed Performance: The NB6L72MNGEVB operates at a maximum frequency of 3.2 GHz, making it suitable for high-speed clock and data distribution.
• Dual Differential LVDS Outputs: This product features two low-voltage differential signaling outputs that can drive 100-ohm loads, providing excellent signal integrity.
• Low Additive Phase Noise: With an emphasis on quality signal transmission, the device ensures minimal phase noise addition, preserving the integrity of the clock signal.
• Power Supply Flexibility: The device can be powered by a supply voltage ranging from 2.375V to 3.465V, accommodating various system design requirements.
• Enable/Disable Function: An enable/disable function allows users to manage the power consumption and signal output effectively, offering design flexibility.

Applications

The NB6L72MNGEVB is ideal for a range of applications, including but not limited to:

• High-speed data communication systems
• Clock distribution networks
• Signal path optimization in networking and telecommunications
• High-frequency test equipment

Quality and Reliability

ON Semiconductor is known for its commitment to quality and reliability, and the NB6L72MNGEVB is no exception. It is built to meet the high standards expected in professional electronics environments, ensuring long-term performance and stability.

Conclusion

With its high-speed capabilities, dual differential outputs, and power efficiency, the NB6L72MNGEVB from ON Semiconductor is an excellent choice for engineers looking to enhance their high-speed signal distribution systems. Its robust feature set and flexible design options make it a versatile component for a wide array of applications.
