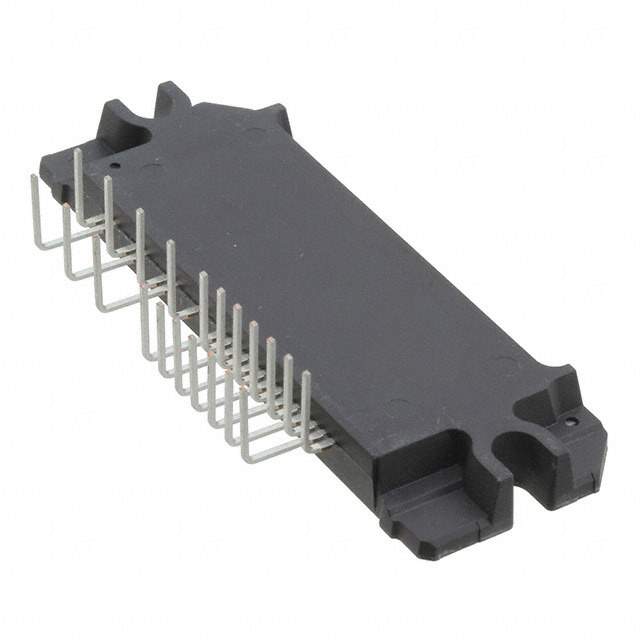

ON Semiconductor STK554U362A-E Intelligent Power Module

The ON Semiconductor STK554U362A-E is a highly efficient, integrated inverter power module designed for driving three-phase brushless DC motors. This intelligent power module combines IGBTs (Insulated Gate Bipolar Transistors) with freewheeling diodes in a compact package, making it an ideal solution for applications such as air conditioners, washing machines, refrigerators, and other home appliances that require reliable motor control.

Key Features:

• High Voltage Tolerance: The STK554U362A-E is capable of handling up to 600V, providing robust performance for a wide range of electrical applications.
• High Current Capacity: With a continuous current rating of 20A, this module can easily manage the demands of most mid-range motor applications.
• Integrated Bootstrap Diodes: The inclusion of bootstrap diodes simplifies the PCB layout and reduces external component count, enhancing system reliability and reducing overall cost.
• Overcurrent Protection: The module includes built-in overcurrent protection, ensuring safe operation and preventing damage to the module and the motor in the event of a current overload.
• Isolated Base Plate: The STK554U362A-E features an isolated base plate, providing excellent thermal performance and electrical isolation, which is critical for safety and longevity.
• Compact Design: The power module's small footprint allows for more compact and streamlined designs, saving space in end products.

Applications:

The STK554U362A-E is versatile and can be used in a variety of applications where efficient and reliable motor control is required. Its main applications include:

• Home Appliances
• Industrial Motor Drives
• Fans and Pumps
• Heating, Ventilation, and Air Conditioning Systems (HVAC)

Reliability and Quality:

ON Semiconductor is known for its commitment to quality and reliability, and the STK554U362A-E is no exception. It is built to meet the high standards of performance and durability that are expected from ON Semiconductor products, ensuring a reliable solution for designers and manufacturers.

In summary, the STK554U362A-E from ON Semiconductor is a powerful and reliable option for anyone looking to integrate a high-performance inverter power module into their motor control systems, offering a combination of efficiency, protection features, and compact design.
