Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer onsemi
Packaging Reel - TR
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 3 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 2.5 µs
Current - Reverse Leakage @ Vr 5 µA @ 1200 V
Capacitance @ Vr, F 60pF @ 4V, 1MHz
Mounting Surface Mount

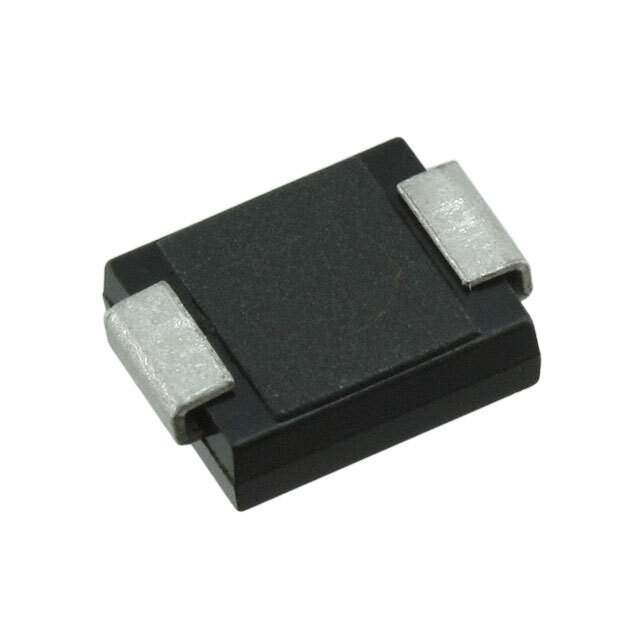

Case / Package DO-214AB, SMC
Supplier Device Package SMC (DO-214AB)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number S3N
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number S3N-ND,2156-S3N-OS,S3NTR,S3NCT,S3NDKR,FAIFSCS3N
Standard Package 3,000
Win Source Part Number 1325148-S3N
Ultra Librarian 3D Model Ultra Librarian S3N CAD Model

Description

ON Semiconductor's S3N Series - Robust Rectifiers

The Product S3N series from ON Semiconductor represents a line of high-performance rectifiers designed for a variety of applications requiring efficient power conversion and control. These devices are engineered to provide a combination of low forward voltage drop and high current capability, making them ideal for use in power supply systems, consumer electronics, and industrial equipment.

Key Features:

  • High Current Capability: The S3N series is capable of handling high surge currents, ensuring stability in applications that experience short-term overloads.
  • Low Forward Voltage Drop: These rectifiers are optimized to have a low forward voltage drop, which minimizes power loss and improves efficiency in the circuit.
  • High Reliability: Built with ON Semiconductor's commitment to quality, the S3N devices offer long-term reliability, reducing maintenance costs and downtime in critical applications.
  • Wide Operating Temperature Range: The series is designed to operate effectively over a broad temperature range, accommodating various environmental conditions.
  • Package Options: Available in multiple package types, the S3N rectifiers provide designers with flexibility in hardware design and layout.

Applications:

The versatility of the S3N series makes them suitable for a wide array of applications, including:

  • Switching power supplies
  • Freewheeling diodes
  • Power inverters
  • Motor controllers
  • Automotive systems

Technical Specifications:

The S3N series boasts impressive technical specifications, featuring a repetitive peak reverse voltage of up to several hundred volts and forward current ratings adequate for most mid-power applications. Detailed datasheets are available to ensure that engineers can match the specific S3N device to their exact requirements.

With ON Semiconductor's proven track record for high-quality electronic components, the S3N series is a reliable choice for engineers looking to enhance the performance and efficiency of their power management systems.
