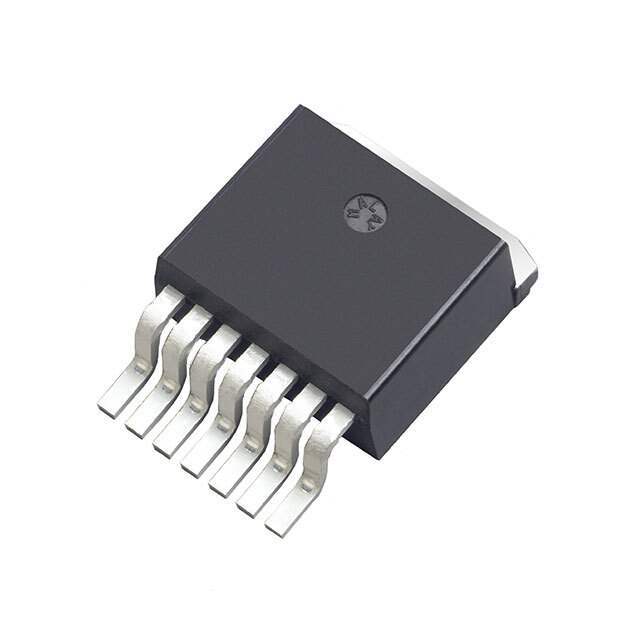

ON Semiconductor NVBG020N090SC1 N-Channel MOSFET

The ON Semiconductor NVBG020N090SC1 is a high-performance N-Channel MOSFET that offers superior efficiency and power density for a wide range of applications. This MOSFET is designed to meet the stringent requirements of modern power conversion systems, providing designers with an optimal solution for their switching applications.

Key Features

• High Current Capability: With a continuous drain current (ID) of 120 A, this MOSFET can handle high-power applications with ease.
• Low On-Resistance: The NVBG020N090SC1 boasts an extremely low on-resistance (RDS(on)) of 2 mΩ, which minimizes conduction losses and improves overall efficiency.
• High Voltage Rating: With a drain-to-source voltage (VDS) of 900 V, it is suitable for high voltage applications, providing reliable performance under demanding conditions.
• Fast Switching Speed: The device's fast switching capabilities ensure efficient operation at high frequencies, which is crucial for power supplies and converters.
• Low Gate Charge: A reduced total gate charge (Qg) leads to lower driving losses, making the MOSFET easier to drive and control.
• Robust Body Diode: The NVBG020N090SC1 includes a rugged body diode with a fast reverse recovery, which is essential for hard-switching applications.

Applications

The NVBG020N090SC1 is ideal for a variety of applications, including:

• Power supply units
• DC-DC converters
• Motor drives
• Uninterruptible power supplies (UPS)
• Electric vehicle (EV) charging stations
• Solar inverters
• Switch-mode power supplies (SMPS)

Reliability and Durability

ON Semiconductor's NVBG020N090SC1 is designed to withstand harsh conditions and provide reliable operation over its lifespan. Its robust construction ensures that it can handle high levels of stress both electrically and thermally. The MOSFET's package is engineered for optimal heat dissipation, further enhancing its durability and performance under high-temperature conditions.

Environmental Compliance

Committed to environmental sustainability, ON Semiconductor ensures that the NVBG020N090SC1 complies with RoHS regulations, making it a suitable choice for eco-friendly designs and applications.

With its combination of efficiency, reliability, and performance, the NVBG020N090SC1 from ON Semiconductor stands out as a premier choice for engineers looking to optimize their power conversion systems.
