ON Semiconductor MOC3062TVM Optoisolator Triac Driver

The ON Semiconductor MOC3062TVM is a highly reliable, optically isolated triac driver device designed for interfacing between electronic controls and power triacs to control resistive and inductive loads for 115 VAC operations. This optoisolator component provides a robust solution for applications requiring voltage isolation and noise immunity, ensuring safe and effective operation in a variety of electrical environments.

Featuring a gallium-arsenide infrared LED and a silicon bilateral switch, the MOC3062TVM offers a non-zero crossing circuit, which allows for better control of the load and reduces electromagnetic interference (EMI) during the turn-on phase. This makes it an excellent choice for applications where precise control over the AC load is necessary, such as in motor control, lighting control systems, and industrial process control equipment.

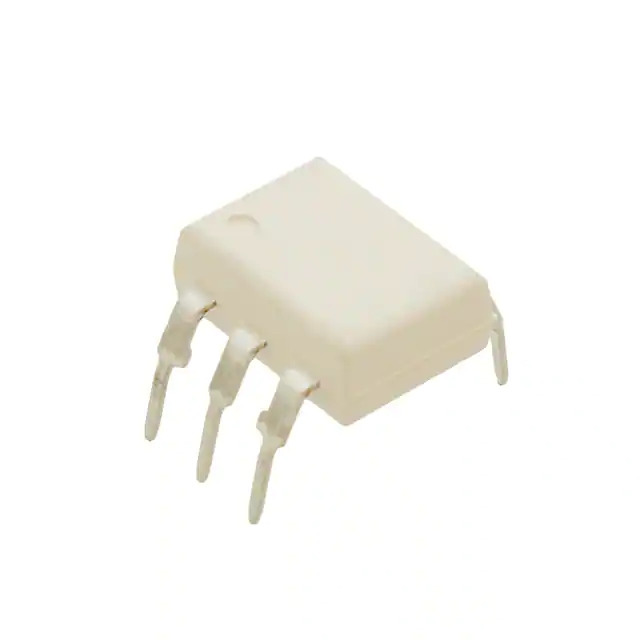

With its 600V peak blocking voltage, this optoisolator can handle a wide range of AC power applications. The device is packaged in a 6-pin DIP (Dual In-line Package), which makes it easy to integrate into a variety of circuit boards. The MOC3062TVM also boasts a high isolation voltage of 7500V peak, providing an additional layer of protection against high voltage spikes and transients.

The ON Semiconductor MOC3062TVM is designed to simplify the design of triac-based switching for AC loads by providing a complete, ready-to-use interface in a single package. Its built-in resistive and capacitive components allow for simplified gate triggering, and it is compatible with a wide range of microcontrollers and other logic-level devices.

With its high noise immunity and direct interface to a microcontroller, the MOC3062TVM is an ideal solution for designers looking to create compact, efficient, and reliable systems for controlling power and lighting. Its compliance with UL, CSA, and IEC standards for safety insulation also ensures that it can be used in consumer and industrial applications worldwide with confidence.

Overall, the MOC3062TVM from ON Semiconductor is a versatile and dependable component that streamlines the development of AC power control applications, providing both performance and peace of mind.
