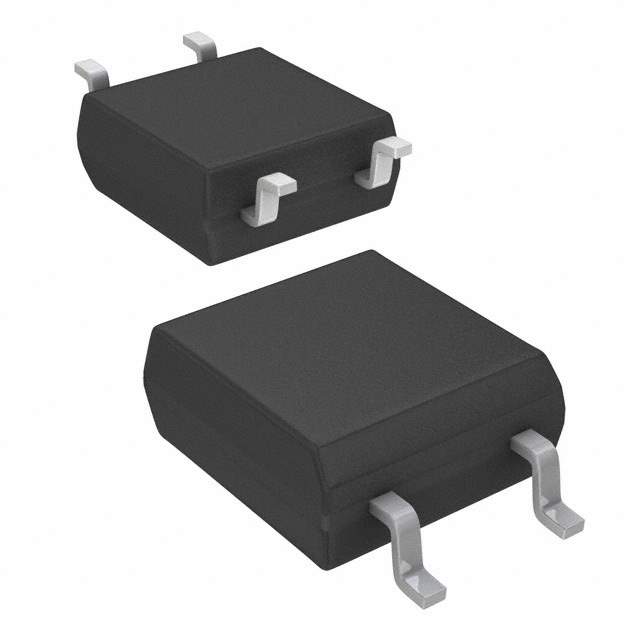

VOM3053T Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay Semiconductor Opto Division
Packaging Reel - TR
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Voltage - Isolation 3750Vrms
Voltage - Off State 600V
Static dV/dt (Minimum) 1.5kV/μs
Current - LED Trigger (Ift) (Maximum) 5mA
Current - On State (It (RMS)) (Maximum) 70mA
Current - Hold (Ih) 300μA (Typ)
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 60mA
Operating Temperature Range -40°C ~ 100°C
Mounting SMD
Package 4-SMD, Gull Wing
Manufacturer Package 4-SOP (2.54mm)
Approvals CQC, cUR, UR
Win Source Part Number 1279720-VOM3053T
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VOM3053T CAD Model

Description

The Vishay Isolator with Win Source Part Number 1279720-VOM3053T is a surface-mount component with a package of 4-SMD, Gull Wing.

  • Voltage Off State: 600V
  • Isolation Voltage: 3750Vrms
  • Current Hold: 300μA (Typ)
  • Current On State (It (RMS)) (Maximum): 70mA
