ON Semiconductor MC34063LBGEVB Evaluation Board

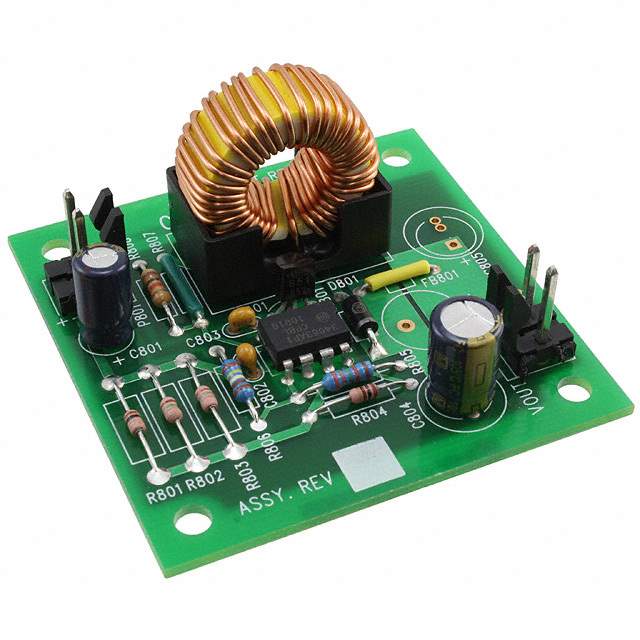

The MC34063LBGEVB from ON Semiconductor is an evaluation board designed to demonstrate the capabilities of the MC34063A, a versatile monolithic DC-DC converter integrated circuit. This evaluation board provides an excellent platform for engineers and designers to explore the functionalities of the MC34063A chip in various power conversion applications, including step-up (boost), step-down (buck), and voltage-inverting configurations.

Key Features:

• Flexible Voltage Conversion: The MC34063A IC supports a wide input voltage range from 3 V to 40 V, making the evaluation board suitable for a variety of power supply scenarios.
• Adjustable Output: Users can configure the board to deliver an adjustable output voltage, which allows for extensive experimentation and optimization for specific use cases.
• High Efficiency: The board is designed to showcase the high-efficiency conversion capabilities of the MC34063A, ensuring minimal power loss during operation.
• Compact Design: The MC34063LBGEVB is designed with a small footprint, making it easy to integrate into existing projects or prototypes without taking up significant space.
• Easy to Use: With all necessary components pre-assembled, the evaluation board is user-friendly and ready to use out of the box for immediate testing and validation.

Applications:

The MC34063LBGEVB is suitable for a wide range of applications, including but not limited to:

• Power supply modules
• Battery chargers
• Automotive power systems
• Portable electronics
• LED drivers

Technical Specifications:

The evaluation board features several technical specifications that highlight its performance:

• Input Voltage: 3 V to 40 V
• Output Voltage: Adjustable based on configuration
• Switching Frequency: Up to 100 kHz
• Package: Evaluation Board

The MC34063LBGEVB is an ideal solution for developers looking to quickly prototype and test power supply designs using the MC34063A DC-DC converter IC. With its adaptability and ease of use, this evaluation board from ON Semiconductor is an indispensable tool for powering innovation in electronic design.
