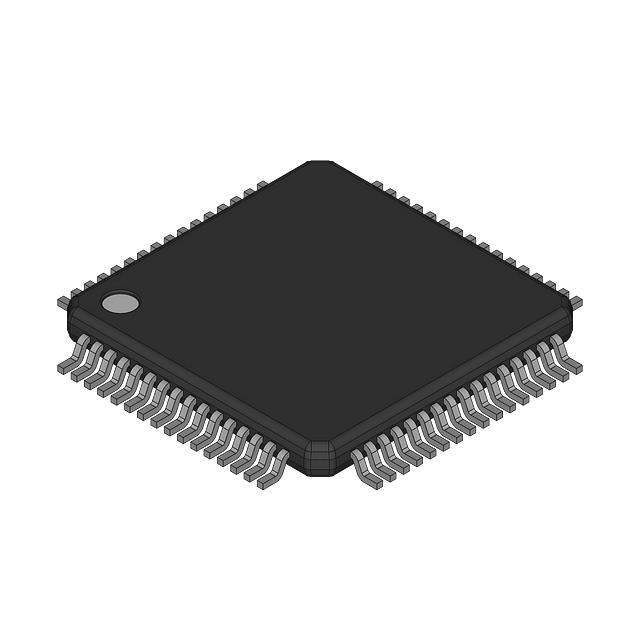

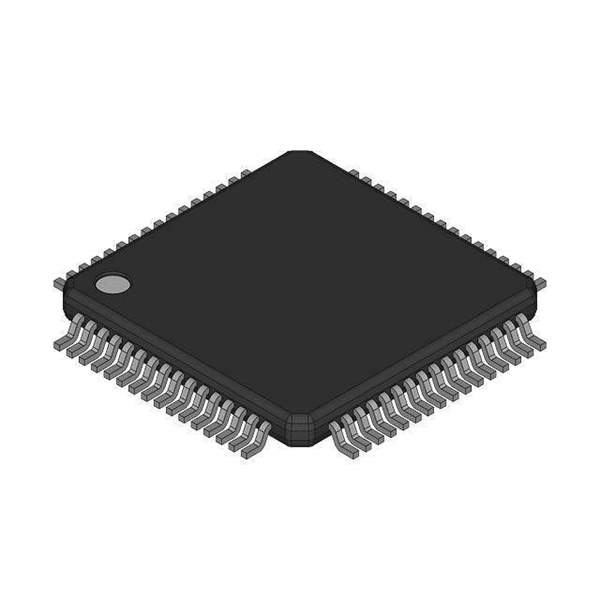

ON Semiconductor LV8747T-TLM-E Motor Driver

The LV8747T-TLM-E from ON Semiconductor is a versatile and efficient motor driver that is designed to cater to a wide range of applications requiring precise motor control. This high-performance product is an ideal choice for designers looking to drive stepper motors in various electronic devices such as printers, scanners, cameras, and other compact industrial and consumer applications.

Key Features:

• Dual H-Bridge Driver: The LV8747T-TLM-E is equipped with a dual H-bridge motor driver, which allows it to control two DC motors or one stepper motor with ease.
• High Voltage and Current Ratings: This motor driver operates at a voltage range of 9V to 32V and can handle a maximum output current of up to 3A, making it suitable for a variety of motor specifications.
• Microstepping Support: To achieve smoother and more accurate motor movements, the LV8747T-TLM-E supports microstepping. This feature enables finer control over the motor steps, enhancing the precision of the driven mechanism.
• Low RDS(on): The device features low on-resistance (RDS(on)) MOSFET H-bridges, which helps in reducing power dissipation and improving overall efficiency.
• Thermal Shutdown Function: Safety is paramount, and the LV8747T-TLM-E includes a built-in thermal shutdown function to prevent damage from overheating.

Applications:

• Office Automation Equipment
• Consumer Electronics
• Industrial Machinery
• Medical Devices
• Home Automation Systems

The LV8747T-TLM-E motor driver is designed with a focus on reliability and performance. Its compact package and integrated features make it a convenient and powerful solution for driving motors in a space-efficient manner. With its ability to provide precise control and robust operation, the LV8747T-TLM-E from ON Semiconductor stands out as an excellent choice for your motor driving needs.
