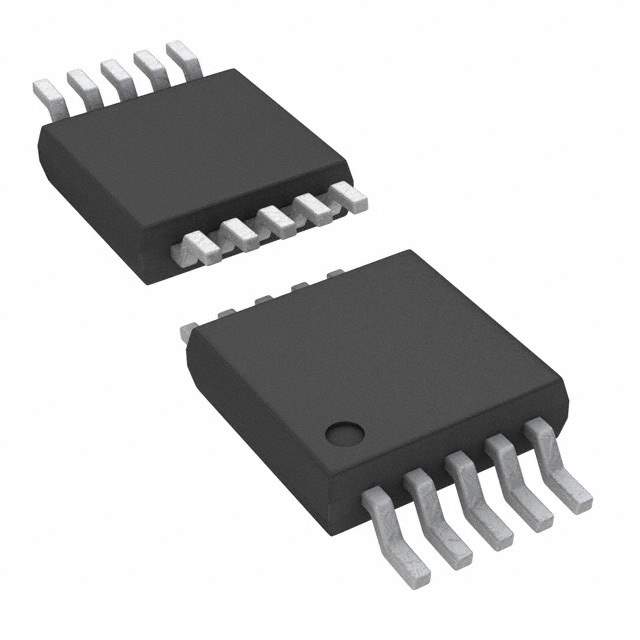

ON Semiconductor LV8548MCZ-AH Motor Driver

The ON Semiconductor LV8548MCZ-AH is a high-performance, low-voltage dual H-bridge motor driver IC designed to efficiently control the direction and speed of DC motors. This compact and versatile driver is an ideal choice for a wide range of applications, including battery-powered devices, portable equipment, and small robotic systems.

Key Features

• Low Voltage Operation: The LV8548MCZ-AH operates at a voltage range from 2.5V to 9V, making it suitable for devices with low power supply requirements.
• Dual H-Bridge: It contains two H-bridge drivers, allowing it to control two DC motors independently, or one stepper motor in bipolar configuration.
• High Output Current: With an output current of up to 1.0A (peak) per channel, it can drive a wide array of small to medium-sized motors.
• Low Saturation Voltage: The low on-resistance of the output stage results in low saturation voltage, enhancing efficiency and reducing thermal dissipation.
• Thermal Shutdown: Built-in thermal shutdown feature ensures protection against overheating, enhancing the durability and reliability of the IC.
• Standby Mode: A standby function is available to minimize power consumption when the motor is not in use.

Applications

• Battery-powered toys
• Portable electronic devices
• Small robotic systems
• Office automation machines
• Home appliances

The LV8548MCZ-AH's small footprint and low power consumption make it an excellent choice for designers looking to create compact and energy-efficient motor control solutions. Its ease of use, combined with robust protection features, ensures that this motor driver can deliver reliable performance in a variety of settings.

With ON Semiconductor's commitment to quality, the LV8548MCZ-AH represents a dependable solution for your motor driving needs, providing both flexibility and durability in a single package. Whether you're developing a new project or upgrading an existing design, this motor driver IC can help you achieve smooth and precise motor control with minimal power loss.
