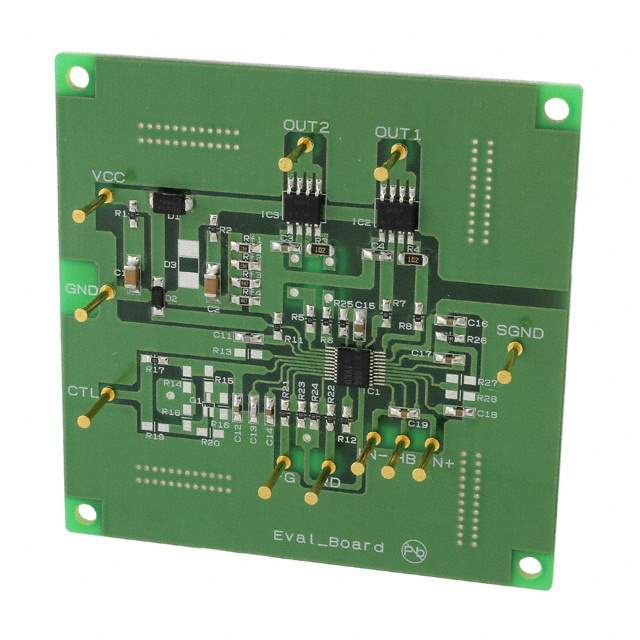

The LB11868VGEVB is a high-performance, versatile motor driver solution from ON Semiconductor, designed to cater to a wide array of applications requiring precision motor control. This evaluation board is specifically engineered to demonstrate the capabilities of the LB11868VG, a three-phase brushless DC motor driver IC, which is an integral part of modern electronic systems requiring efficient and reliable motor operation.
The LB11868VG IC is capable of driving motors with a supply voltage ranging from 4.5V to 5.5V, making it suitable for battery-powered devices and low-voltage applications. It features a built-in Hall sensor input, which simplifies the motor control circuit and enhances the overall system reliability. The IC also incorporates a Lock Detect / Automatic Restart function that ensures the motor operation resumes smoothly after a lock condition is resolved.
The LB11868VGEVB enables designers and engineers to thoroughly evaluate the LB11868VG IC's performance. It comes with all necessary components to facilitate quick and easy setup, allowing for immediate testing and prototyping. The board's layout is optimized to showcase the IC's features such as its high-efficiency operation and thermal management capabilities.
Key features of the LB11868VGEVB include:
- Direct drive of a three-phase brushless DC motor
- Integrated Hall-effect sensor interface
- Lock Detect / Automatic Restart function for enhanced safety
- Forward and reverse rotation control
- Overcurrent protection for safe operation
- Thermal shutdown feature to prevent overheating
- LED indicators for status and error reporting
The LB11868VGEVB is an ideal platform for developing applications such as cooling fans, pumps, and portable devices, where efficient and compact motor control is essential. ON Semiconductor provides comprehensive support documentation for this evaluation board, including detailed schematics, user manuals, and application notes, to assist developers in fully leveraging the board's capabilities.
With its robust design and feature-rich configuration, the LB11868VGEVB from ON Semiconductor stands as a valuable tool for any project involving three-phase brushless DC motor control, offering reliability, efficiency, and ease of use.
