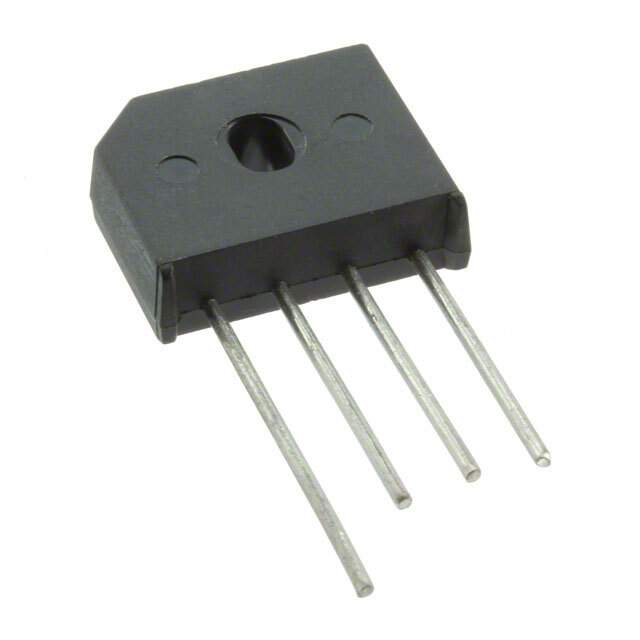

The ON Semiconductor KBU8J is a robust single-phase bridge rectifier that is designed to efficiently convert an alternating current (AC) input into a direct current (DC) output. This electronic component is a crucial part of power supply units, found in a wide range of applications including consumer electronics, industrial automation, and telecommunications equipment.

Key Features

• High Current Rating: The KBU8J is capable of handling a high forward current of 8A, making it suitable for applications requiring significant power handling capabilities.
• High Reverse Voltage: With a peak reverse voltage (PRV) of 600V, it can withstand potential surges, ensuring reliability and stability in the circuit.
• Efficient Operation: The low forward voltage drop reduces power loss and improves efficiency, which is critical for energy-sensitive designs.
• Isolation Voltage: The component provides an isolation voltage of 1500V, offering additional protection against electrical shocks and circuit damages.
• Thermal Performance: The KBU8J is encapsulated in a mold compound that ensures excellent thermal performance and enhances the longevity of the device.

Package and Installation

The KBU8J comes in a KBU package, which is known for its ease of mounting on a printed circuit board (PCB) due to its through-hole design. This package also allows for efficient heat dissipation, which is critical for maintaining performance under high-current conditions.

Applications

ON Semiconductor's KBU8J is versatile and can be used in a variety of applications, such as:

• Power supplies for personal computers
• Consumer electronics like televisions and monitors
• Industrial equipment
• AC/DC converters
• Battery chargers
• Office machines such as printers and copiers

In summary, the KBU8J is a reliable and efficient bridge rectifier that is well-suited for high-current applications requiring a high degree of reliability and performance.
