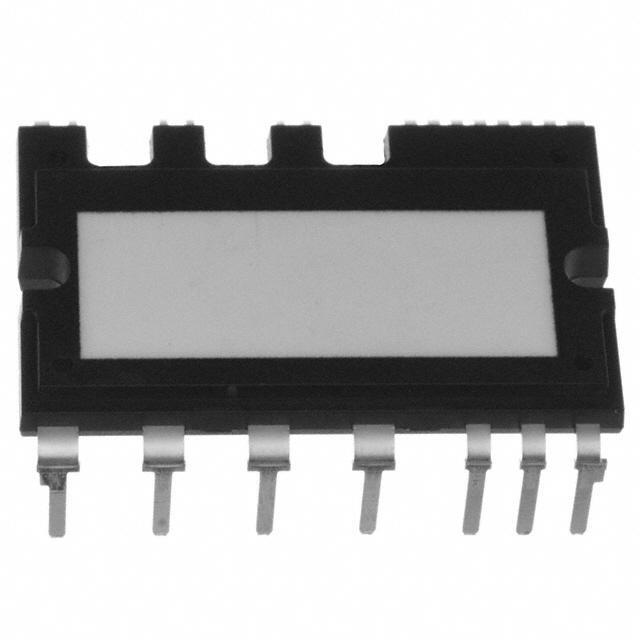

The FSBS15CH60 is a highly integrated Smart Power Module (SPM) designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This advanced module is a perfect solution for driving three-phase brushless DC motors in a variety of applications, including home appliances, air conditioners, fans, compressors, and industrial controls.

Key Features

• Integrated IGBTs: The module contains six IGBTs configured in a three-phase inverter arrangement, providing high-efficiency power conversion for motor drive applications.
• Built-in Bootstrap Diodes: These diodes are included for the high-side gate drive, simplifying the PCB layout and reducing external component count.
• Optimized for Low Electromagnetic Interference (EMI): The FSBS15CH60 is designed to minimize EMI, a critical consideration in modern electronic designs.
• Overcurrent Protection: The module includes an overcurrent protection feature that helps prevent damage to the IGBTs under fault conditions.
• Under-Voltage Lockout: All high-side and low-side IGBTs are turned off when an undervoltage condition is detected, ensuring safe operation of the module.
• Temperature Monitoring: An integrated temperature sensing function allows for thermal management and protection of the module.
• Compact Design: The FSBS15CH60's small footprint and low-profile package enable it to be used in space-constrained applications.

Applications

The versatility of the FSBS15CH60 Smart Power Module allows it to be used across a wide range of applications. Its robust design and integrated features make it an ideal choice for:

• Home Appliances (Washing Machines, Refrigerators)
• Air Conditioners and HVAC Systems
• Industrial Motor Drives
• Fans and Blowers
• Pumps and Compressors

Technical Specifications

The FSBS15CH60 module operates with a supply voltage of up to 600V and has a rated current of 15A. It is designed to provide reliable operation and a long lifespan, even under challenging conditions.

For those looking to innovate in the field of motor control, the FSBS15CH60 from ON Semiconductor offers an efficient, compact, and reliable solution that significantly reduces time-to-market and design complexity.
