ON Semiconductor FDMF8811 Full-Bridge Power Stage Module

The ON Semiconductor FDMF8811 is a highly integrated full-bridge power stage module that is a key component for driving efficient power conversion in a compact form factor. This advanced module is designed to provide a high-performance solution for synchronous buck or full-bridge DC-DC converters, as well as for applications such as computing, server, and telecommunication power systems.

At the heart of the FDMF8811 module are four 30V N-channel PowerTrench® MOSFETs configured in an H-bridge arrangement. This configuration is optimized for high-efficiency power conversion, enabling the module to deliver exceptional performance with reduced switching and conduction losses. The PowerTrench technology is known for its low figure of merit (Rdson x Qg), which translates to lower power dissipation and improved thermal management, making the FDMF8811 an excellent choice for demanding applications.

One of the standout features of the FDMF8811 is its integrated high-side gate drivers, which simplify the design and reduce the external component count. This integration not only saves PCB space but also enhances system reliability by minimizing the parasitic inductances that can affect switching performance. Additionally, the module includes a bootstrap diode for the high-side drive, further reducing the external parts needed and simplifying the overall design process.

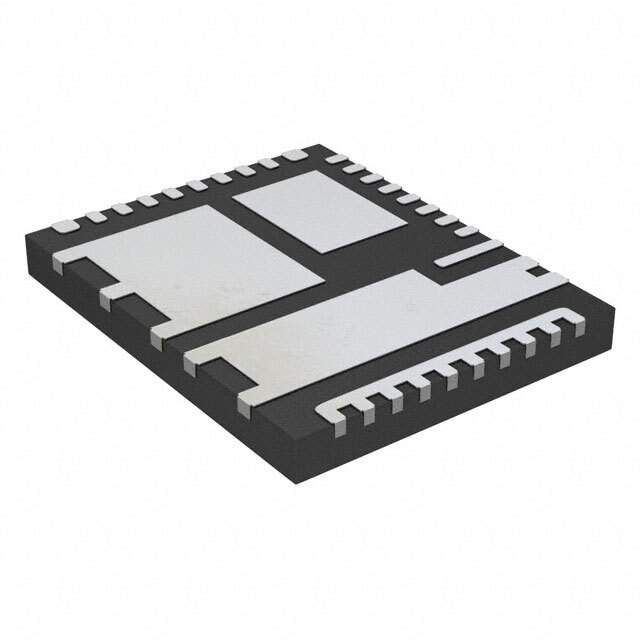

The FDMF8811 comes in a compact 8x8mm² PQFN package that is optimized for excellent thermal performance, ensuring the module operates within its temperature range even under high power conditions. The package is designed with an exposed pad to facilitate efficient heat dissipation, which is critical for maintaining the longevity and reliability of the device.

For protection and ease of use, the FDMF8811 includes features such as under-voltage lockout (UVLO) for both high-side and low-side drivers, ensuring that the module operates only when the supply voltage is within the specified range. This helps prevent damage to the module and the system it powers, contributing to overall system robustness.

In summary, the ON Semiconductor FDMF8811 full-bridge power stage module is a powerful, efficient, and compact solution that is ideal for a variety of high-performance power conversion applications. Its integration of advanced technologies and protective features make it a reliable and user-friendly choice for engineers looking to optimize their power system designs.
