The CAT28C16ALI20 from ON Semiconductor is a high-speed 16-kilobit Parallel Electrically Erasable Programmable Read-Only Memory (EEPROM) integrated circuit, designed for a wide range of applications that require a non-volatile memory solution. This particular model is favored for its low-power consumption and reliable data retention, making it an ideal choice for use in microcontroller systems, computer BIOS, telecommunications, and other industrial and consumer electronic devices.

Key Features

• Memory Size: 16Kb (2K x 8)
• Access Time: 200 ns
• Operating Voltage: 4.5V to 5.5V
• Temperature Range: -40°C to +85°C
• Package: 24-Lead PDIP, 300 mil
• Interface: Parallel
• Endurance: 1,000,000 Program/Erase Cycles
• Data Retention: 10 years at 125°C

Performance and Reliability

The CAT28C16ALI20 EEPROM provides quick and efficient data access with an access time of just 200 nanoseconds. Its robust endurance of 1,000,000 program/erase cycles ensures a long operational lifespan, while a data retention period of 10 years at 125°C offers the reliability needed for critical applications. The device operates over a wide temperature range, making it suitable for challenging environmental conditions.

Applications

This EEPROM is versatile and can be used in a variety of applications, including:

• Microcontroller-based systems
• Computer BIOS memory
• Industrial control systems
• Telecommunication devices
• Automotive electronics
• Medical instruments

Easy Integration

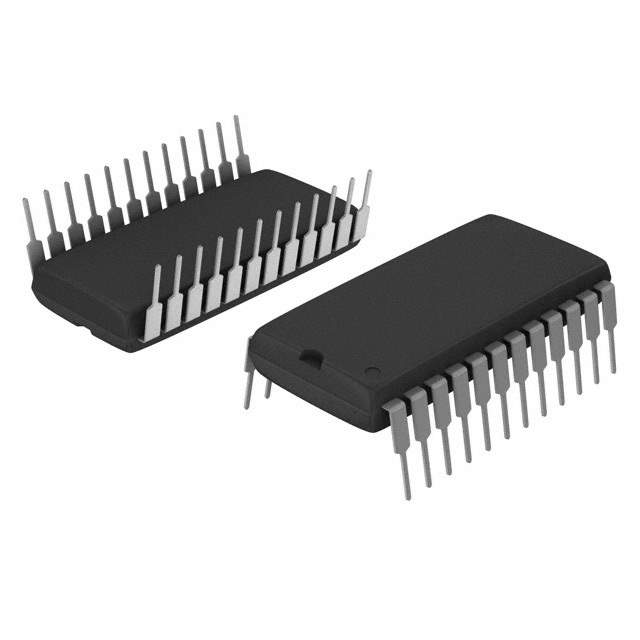

The CAT28C16ALI20 comes in a 24-pin dual in-line package (PDIP), which is widely accepted in the industry and ensures easy integration into existing designs. The parallel interface facilitates a straightforward connection to microcontrollers and other logic devices, simplifying the design and implementation process for engineers.

With its combination of performance, reliability, and ease of use, the CAT28C16ALI20 from ON Semiconductor is a solid choice for designers looking to incorporate a dependable non-volatile memory component into their systems.
