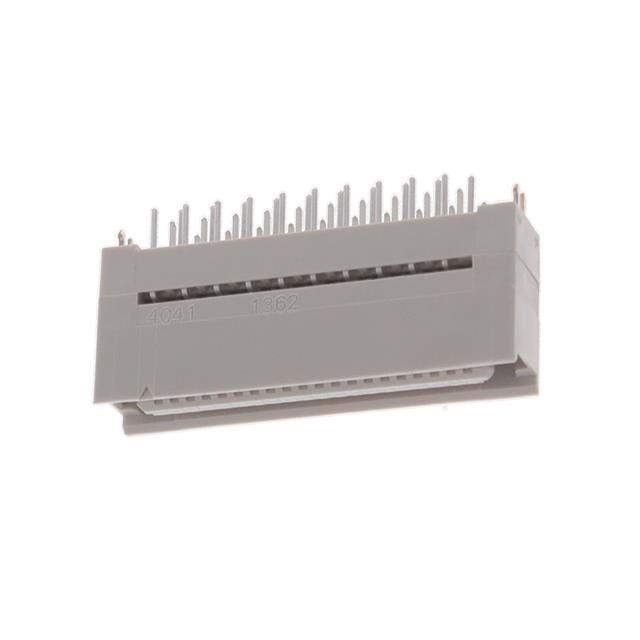

XH3A-4041-4A Real Image
Same model may have multiple batches, images only for reference.

XH3A-4041-4A

Part No XH3A-4041-4A
Manufacturer Omron
Catalog Rectangular - Board to Board Connectors
Description CONN PLUG 40POS VERT GOLD  /  40 Position Connector Plug, Center Strip Contacts Through Hole Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Omron Electronics Inc-EMC Div
Series XH3
Package Bulk
Connector Type Plug, Center Strip Contacts
Number of Positions 40
Pitch 0.050" (1.27mm)
Number of Rows 2
Mounting Type Through Hole
Features Board Lock
Contact Finish Gold
Mated Stacking Heights 16mm, 17mm, 19mm, 20mm
Height Above Board 0.500" (12.70mm)
Base Product Number XH3A-4041
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names XH3A40414A,Z12478,XH3A-4041-4A-ND,XH3A40414ANC,XH3A0018E
Standard Package 70
Win Source Part Number 1000821-XH3A-4041-4A
Ultra Librarian 3D Model Ultra Librarian XH3A-4041-4A CAD Model

Description

The Omron Electronics Inc-EMC Div connector is a high-quality product that belongs to the XH3 series.

  • Positions: 40
  • Pitch: 0.050" (1.27mm)
  • Board Lock: Yes
  • Type: plug with center strip contacts
  • Rows: two
  • Contact Finish: gold
  • Mated Stacking Heights: 16mm, 17mm, 19mm, and 20mm
  • Height Above Board: 0.500" (12.70mm)
  • Mounting: through-hole mounted
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8536.69.4040
  • Packaging: bulk
  • Standard Package: 70
  • Base Product Number: XH3A-4041
