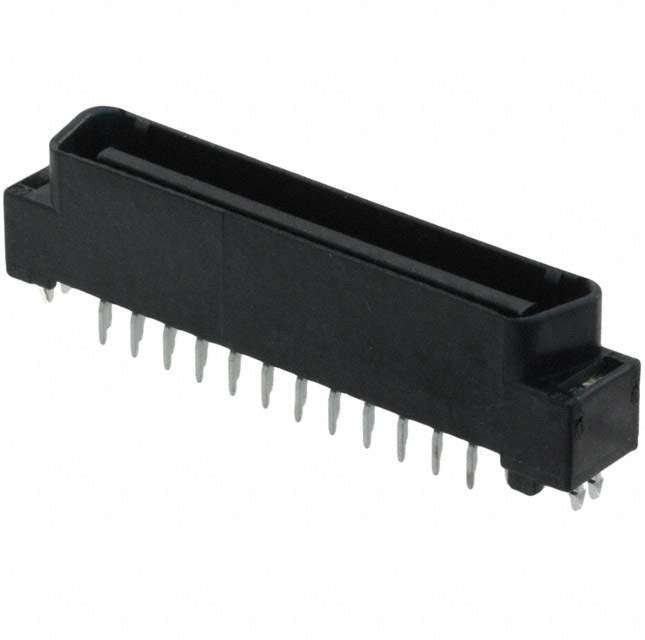

Same model may have multiple batches, images only for reference.

1734100-5

Name: 1734100-5
Brand: TE Connectivity
SKU: 1030205
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1734100-5
Manufacturer	TE Connectivity
Catalog	Rectangular - Board to Board Connectors
Description	CONN BTB PLUG 50POS VERT SOLDER / 50 Position Plug Connector Board to Board Through Hole Solder
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>D-Shaped Connectors - Centronics
Mfr	TE Connectivity AMP Connectors
Series	CHAMP .050 I
Package	Box
Connector Style	Center Strip Contacts
Connector Type	Plug
Number of Positions	50
Number of Rows	2
Mounting Type	Through Hole
Termination	Solder
Type	Board to Board
Features	Board Lock
Contact Finish	Gold
Contact Finish Thickness	Flash
Base Product Number	1734100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	17341005,A101947,1734100-5-ND,-1734100-5-SI
Standard Package	54
Win Source Part Number	1030205-1734100-5
Ultra Librarian 3D Model	Ultra Librarian 1734100-5 CAD Model

Description

The 1734100-5 is a 50-position board-to-board connector from TE Connectivity AMP Connectors.

Connector Style: center strip contact
Connector Type: plug
Rows: two
Termination: solder
Contact Finish: gold with a flash finish thickness
Features: board lock
Package: box
Series: CHAMP .050 I
Alternative Parts: 1734101-5, 1734100-4, and FX2CA-40S-1.27DSAL(71)
Mounting: through-hole
ECCN: EAR99
REACH: unaffected by REACH
HTSUS: 8536.69.4040
