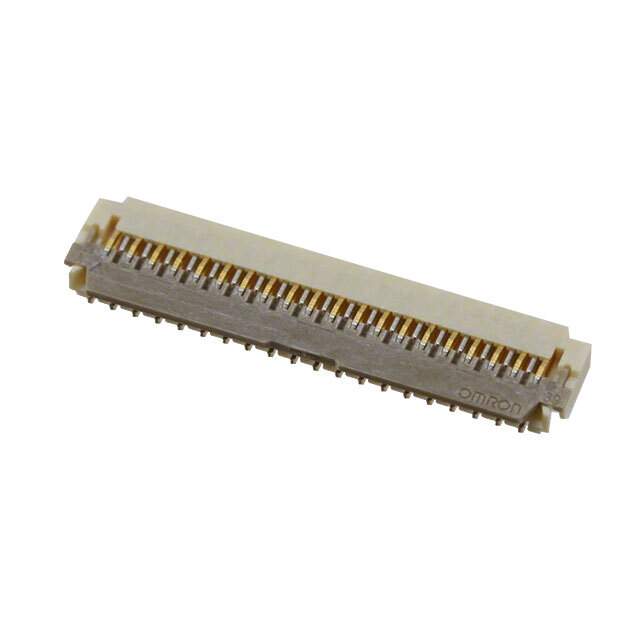

Same model may have multiple batches, images only for reference.

XF3H-3955-31A

Name: XF3H-3955-31A
Brand: Omron
SKU: 1333324
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	XF3H-3955-31A
Manufacturer	Omron
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC BOTTOM 39POS 0.30MM R/A / 39 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet	XF3H-3955-31A Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer	Omron Electronics Inc-EMC Div
Packaging	Reel - TR
Product Status	Obsolete
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	39
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.035" (0.88mm)
Locking Feature	Rotary Lock
Cable End Type	Tapered
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating	50V
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.2A
Contact Finish Thickness	5.90µin (0.150µm)
Housing Color	Natural
Actuator Color	Brown
Mating Cycles	20
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4051
Other Part Number	OR1059CT,OR1059TR,XF3H-3955-31A-ND,XF3H395531A,OR1059DKR
Standard Package	3,000
Win Source Part Number	1333324-XF3H-3955-31A
Ultra Librarian 3D Model	Ultra Librarian XF3H-3955-31A CAD Model

Description

The XF3H-3955-31A is a 39-position FPC connector assembly from Omron Electronics Inc-EMC Div.

Applications: LCD panels, digital cameras, and mobile phones
Feature: rotary lock for secure connection
Design: low profile for space-saving design
RoHS Compliance: yes
Package: compact, surface-mount
Supply and Demand: limited
