Same model may have multiple batches, images only for reference.

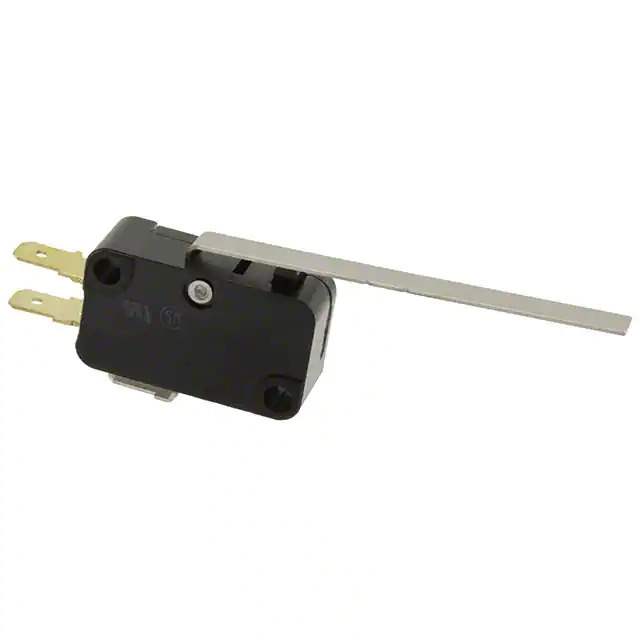

V-153-1C25 Real Image
Same model may have multiple batches, images only for reference.

V-153-1C25

Part No V-153-1C25
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 15A 250V / Switch SPDT Chassis Mount
Datasheet
V-153-1C25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron
Series V
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 15A (AC), 600mA (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)
Ingress Protection IP40
Operating Force 70gf
Release Force 6.118gf
Operating Position 0.600" (15.2mm)
Pretravel 0.354" (9.0mm)
Differential Travel 0.110" (2.8mm)
Overtravel 0.079" (2.0mm)
Temperature Range - Operating -25°C ~ 80°C
Electrical Life 100,000 Cycles
Mechanical Life 50,000,000 Cycles
Base Product Number V-153
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9040
Win Source Part Number 902393-V-153-1C25
Ultra Librarian 3D Model Ultra Librarian V-153-1C25 CAD Model

Description

The Omron 902393-V-153-1C25 is a limit switch from the V series.

  • Termination Style: Quick connect
  • Termination Size: 0.187" (4.7mm)
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Voltage Rating (AC): 250V (AC)
  • Voltage Rating (DC): 125V (DC)
  • Mounting: Chassis mount
  • Operating Temperature Range: -25°C to 80°C
