Same model may have multiple batches, images only for reference.

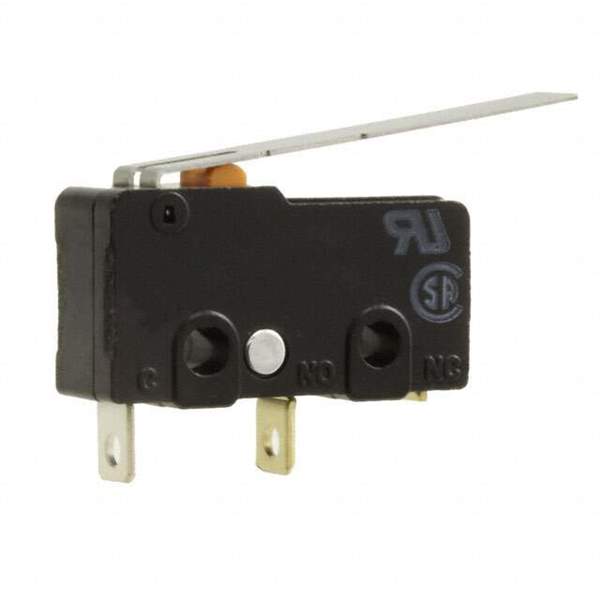

SS-5GL111-3 Real Image
Same model may have multiple batches, images only for reference.

SS-5GL111-3

Part No SS-5GL111-3
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPST-NO 5A 125V / Switch SPST-NO Chassis Mount
Datasheet
SS-5GL111-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 40gf
Release Force 3.059gf
Differential Travel 0.047" (1.2mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Other Names SS5GL1113BYOMI,-SS-5GL111-3,SS5GL1113,Z5074
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233506-SS-5GL111-3
Ultra Librarian 3D Model Ultra Librarian SS-5GL111-3 CAD Model

Description

The Omron 1233506-SS-5GL111-3 is a limit switch that is a part of the SS series.

  • Series: SS
  • Termination Style: Solder Lug
  • Ingress Protection: IP40
  • Voltage Rating for AC: 125 V
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Lever, Straight
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 30,000,000 cycles
  • Operating Force: 40gf
  • Release Force: 3.059gf
  • Differential Travel: 0.047 inches or 1.2 mm
  • Overtravel: 0.047 inches or 1.2 mm
