Same model may have multiple batches, images only for reference.

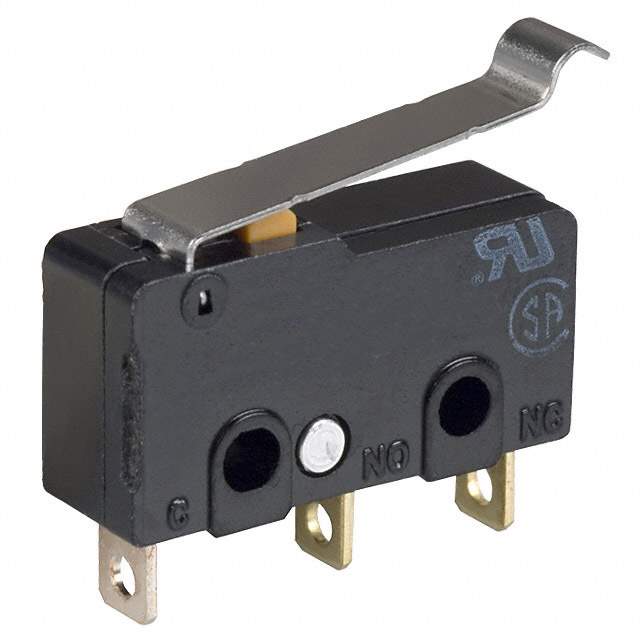

SS-10GL13-2 Real Image
Same model may have multiple batches, images only for reference.

SS-10GL13-2

Part No SS-10GL13-2
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPST-NC 10A 250V / Switch SPST-NC Chassis Mount
Datasheet
SS-10GL13-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPST-NC
Switch Function On-Mom
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 250 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Differential Travel 0.040" (1.0mm)
Overtravel 0.040" (1.0mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.420" (10.7mm)
Electrical Life 50,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SS-10
Other Names SS10GL132
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233536-SS-10GL13-2
Ultra Librarian 3D Model Ultra Librarian SS-10GL13-2 CAD Model

Description

The SS series limit switch is from Omron Electronics Inc-EMC Div and is a SPST-NC circuit switch with an On-Mom switch function.

  • Voltage Rating: 250V AC
  • Current Rating: 10A
  • Actuator Type: Lever, Simulated Roller
  • Mount Type: Chassis Mount
  • Electrical Life: 50,000 cycles
  • Mechanical Life: 10,000,000 cycles
  • Operating Force: 50gf
  • Release Force: 6.118gf
  • Differential Travel: 1.0mm
  • Overtravel: 1.0mm
  • Operating Position: 10.7mm
  • Ingress Protection: IP40
  • Operating Temperature: -25°C to 85°C
