Same model may have multiple batches, images only for reference.

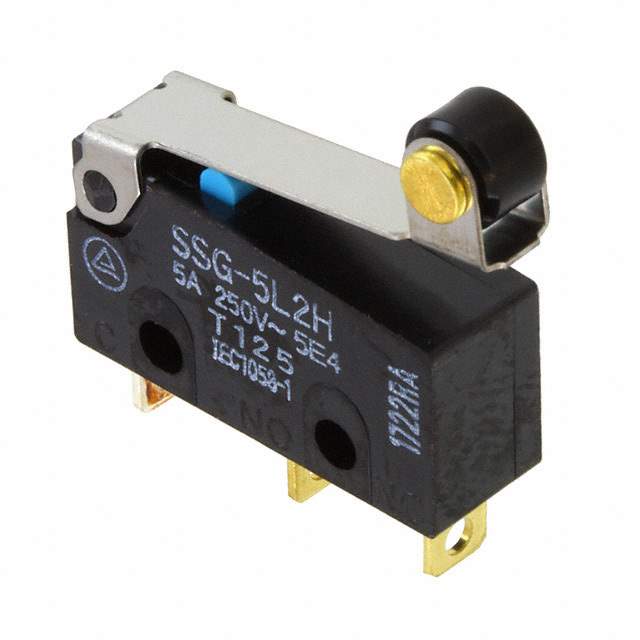

SSG-01L2P Real Image
Same model may have multiple batches, images only for reference.

SSG-01L2P

Part No SSG-01L2P
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SSG
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Roller
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 61gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.040" (1.0mm)
Temperature Range - Operating -25°C ~ 125°C
Operating Position 0.705" (17.9mm)
Electrical Life 200,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SSG-01
Other Names SSG01L2PBYOMZ,SSG-01L2P,SSG-01L2P BY OMZ,SSG01L2P,Z8686,2266-SSG-01L2P
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233433-SSG-01L2P
Ultra Librarian 3D Model Ultra Librarian SSG-01L2P CAD Model

Description

This Omron Electronics Inc-EMC Div product is a limit switch with the part number 1233433-SSG-01L2P.

  • Circuit: SPDT
  • Current Rating: 100mA (AC/DC)
  • Actuator Type: Lever, roller
  • Temperature Range: -25°C to 125°C
  • Package: Tray
  • Standard Package: 500
  • Market: open market
