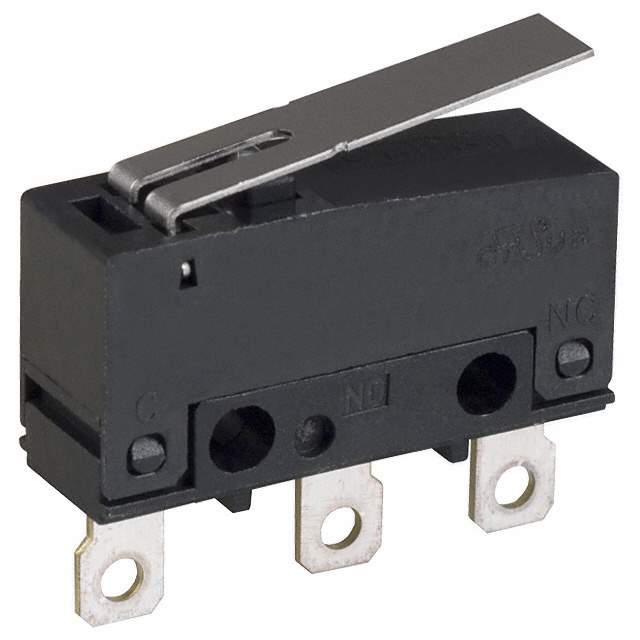

SS-3GLP Real Image
Same model may have multiple batches, images only for reference.

SS-3GLP

Part No SS-3GLP
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V / Switch SPDT Chassis Mount
Datasheet
SS-3GLP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS-P
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 51gf
Release Force 5.099gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.040" (1.0mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number SS-3GL
Other Names 2266-SS-3GLP,SS3GLP,SS-3GLP BY OMZ,SS3GLPBYOMZ,SW764
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233414-SS-3GLP
Ultra Librarian 3D Model Ultra Librarian SS-3GLP CAD Model

Description

The SS-3GLP is a high-quality limit switch manufactured by Omron Electronics Inc-EMC Div.

  • Current Rating: 3A (AC/DC)
  • Voltage Rating: 125V (AC), 30V (DC)
  • Mechanical Life: 1,000,000 cycles
  • Release Force: 5.099gf
  • Supply and Demand Status: Not Applicable
