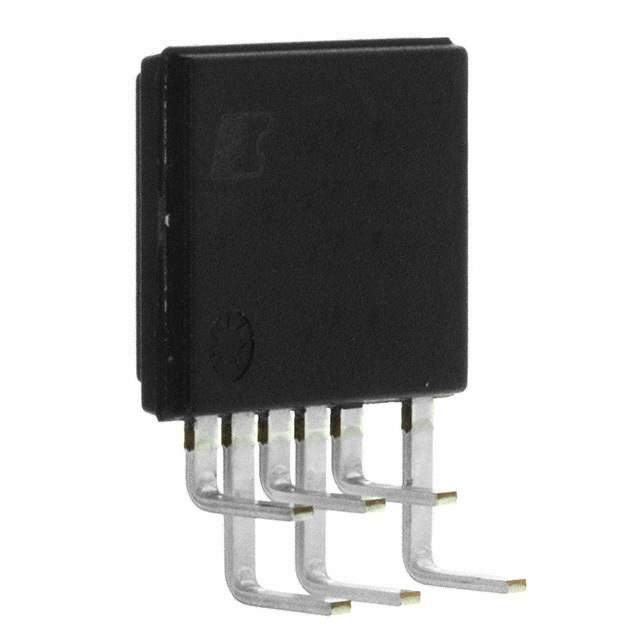

TOP255LN Real Image
Same model may have multiple batches, images only for reference.

TOP255LN

Part No TOP255LN
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description Enhanced EcoSmart, Integrated Off-Line Switcher with Advanced Feature Set and Extended Power Range
Datasheet
TOP255LN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Power Integrations
Series TOPSwitch-HX
Packaging Tube
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Duty Cycle 78%
Frequency - Switching 66kHz, 132kHz
Power (Watts) 81W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Operating Temperature Range -40°C ~ 150°C (TJ)
Package 7-SIP, 6 Leads, Exposed Pad, Formed Leads
Manufacturer Package eSIP-7F
Mounting Style Through Hole
Win Source Part Number 1271643-TOP255LN
Manufacturer Homepage www.powerint.com
Popularity Medium
Supply and Demand Status Limited
Family Name TOP255
Introduction Date August 01, 2008
ECCN EAR99
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian TOP255LN CAD Model

Description

The Power Integrations TOP255LN is a high-performance integrated circuit that is ideal for a wide range of applications.

  • Series: TOPSwitch-HX
  • Power Rating: 81W
  • Package: 7-SIP, 6 Leads, Exposed Pad, Formed Leads
  • Mounting Type: Through Hole
  • Output Isolation: Yes
  • Internal Switch: Yes
  • Voltage Breakdown: 700V
  • Duty Cycle: 78%
  • Switching Frequency: 66kHz and 132kHz
  • Fault Protection: Current limiting, over-temperature, and overvoltage protection
