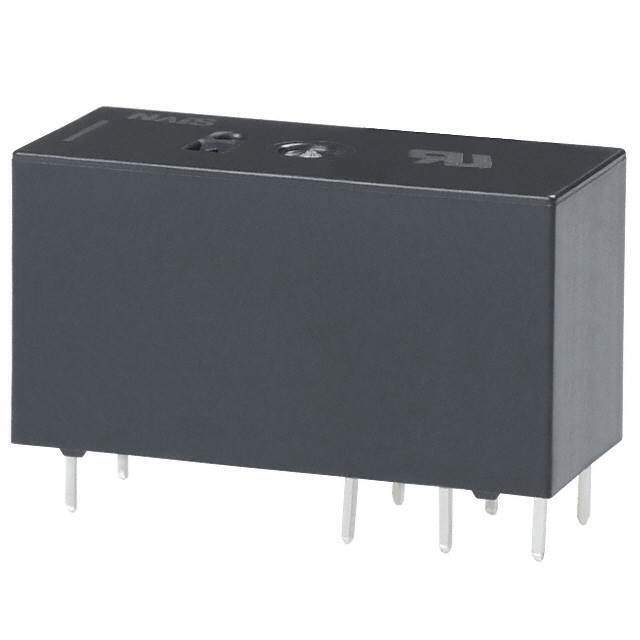

ALZ12F05W Real Image
Same model may have multiple batches, images only for reference.

ALZ12F05W

Part No ALZ12F05W
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 2000746-ALZ12F05W
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16A
Switching Voltage 440VAC - Max
Load - Max Switching 7040VA
Coil Current 80mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 15ms
Release Time 5ms
Operating Temperature -40°C ~ 105°C
Contact Material Silver Tin Oxide (AgSnO)
Approval Agency cURus, VDE
Relay Type General Purpose
Grade -
Win Source Part Number Cross
Category Relays
Packaging Bulk
Operating Temperature Range -45°C ~ 105°C
Mounting Style Through Hole
Ultra Librarian 3D Model Ultra Librarian ALZ12F05W CAD Model

Description

This relay is a through-hole mounting style component designed for use in a wide range of applications.

  • Mounting Style: Through-Hole
  • Packaging: Bulk
  • Operating Temperature: -45°C to 105°C
  • Popularity: Medium
  • Features: Alternative Part Cross-Reference
  • Standard Package: 1
