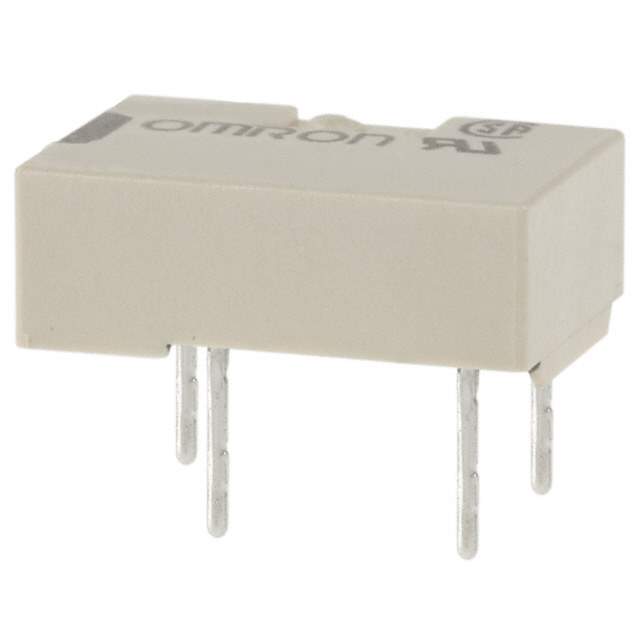

G6L-1P DC5 Real Image
Same model may have multiple batches, images only for reference.

G6L-1P DC5

Part No G6L-1P DC5
Manufacturer Omron
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM SPST 1A 5VDC / Telecom Relay SPST-NO (1 Form A) Through Hole
Datasheet
G6L-1P DC5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Signal Relays, Up to 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6L
Package Tube
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 1 A
Switching Voltage 125VAC, 60VDC - Max
Coil Current 36 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 4 VDC
Must Release Voltage 0.5 VDC
Operate Time 5 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Relay Type Telecom
Coil Resistance 139 Ohms
Base Product Number G6L
Other Names G6L-1P-DC5,G6L1P5DC,G6L1PDC5,Z1228,G6L 8001C
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1237279-G6L-1P DC5
Ultra Librarian 3D Model Ultra Librarian G6L-1P DC5 CAD Model

Description

The G6L-1P DC5 is a signal relay from Omron Electronics Inc-EMC Div that is designed to provide high switching capacity with a small footprint.

  • Contact Form: Single-pole, single-throw (SPST-NO)
  • Contact Rating: 1A @ 125VAC or 60VDC
  • Coil Voltage: 5VDC
  • Coil Resistance: 139Ω
  • Construction: Sealed
