Same model may have multiple batches, images only for reference.

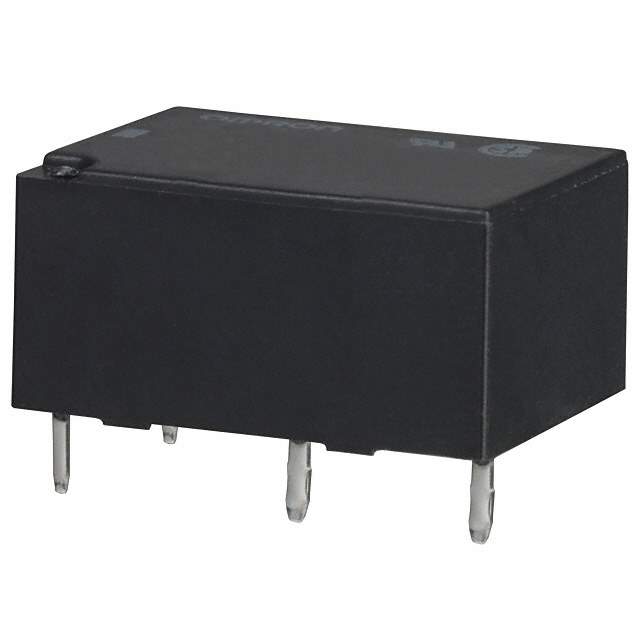

G6CU-1114P-US-DC24 Real Image
Same model may have multiple batches, images only for reference.

G6CU-1114P-US-DC24

Part No G6CU-1114P-US-DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Datasheet
G6CU-1114P-US-DC24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6C
Package Bulk
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 8.3 mA
Coil Type Latching, Single Coil
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 16.8 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -25°C ~ 70°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 2.88 kOhms
Base Product Number G6C
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1316085-G6CU-1114P-US-DC24
Ultra Librarian 3D Model Ultra Librarian G6CU-1114P-US-DC24 CAD Model

Description

The Omron G6CU-1114P-US-DC24 power relay is a SPST-NO (1 Form A) relay that can handle a maximum switching voltage of 250VAC and 125VDC.

  • Coil Resistance: 2.88 kOhms
  • Coil Voltage: 24VDC
  • Coil Current: 8.3 mA
  • Contact Rating: 10 A
  • Switching Voltage: 250VAC and 125VDC
  • Relay Type: General-purpose
  • Latching: Single coil
  • Seal Rating: Fully sealed
  • Mounting: Through the hole
  • Operating Temperature Range: -25°C to 70°C
