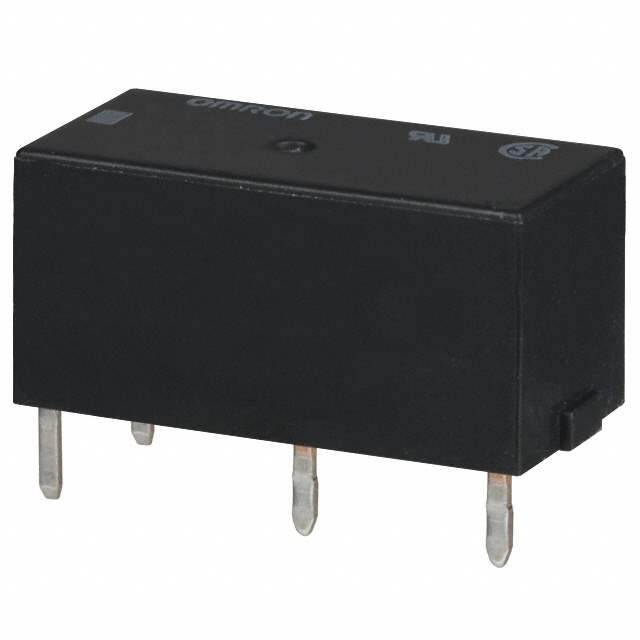

G6B-2114P-1-US 24VDC Real Image
Same model may have multiple batches, images only for reference.

G6B-2114P-1-US 24VDC

Part No G6B-2114P-1-US 24VDC
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 5A 24V
Datasheet
G6B-2114P-1-US 24VDC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 12.5mA
Coil Voltage 24VDC
Contact Form DPST-NO/NC (1 Form A and B)
Contact Rating (Current) 5A
Switching Voltage 380VAC, 125VDC - Max
Turn On Voltage (Max) 19.2 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 10ms
Release Time 10ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 300 mW
Coil Resistance 1.92 kOhms
Temperature Range - Operating -25°C to 70°C
Win Source Part Number 204393-G6B-2114P-1-US 24VDC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian G6B-2114P-1-US 24VDC CAD Model

Description

The Omron Electronics Inc-EMC Div 204393-G6B-2114P-1-US 24VDC relay is a sealed, general-purpose relay with DPST-NO/NC (1 Form A and B) contact form.

  • Contact Form: DPST-NO/NC (1 Form A and B)
  • Mounting Style: Through-Hole
  • Termination: PC Pin
  • Coil Resistance: 1.92 kOhms
  • Coil Current: 12.5mA
  • Operate Time: 10ms
  • Release Time: 10ms
  • Coil Voltage: 24VDC
  • Coil Power: 300 mW
  • Contact Rating (Current): 5A
  • Switching Voltage: 380VAC and 125VDC max
  • Turn On Voltage (Max): 19.2 VDC
  • Turn Off Voltage (Min): 2.4 VDC
  • Temperature Range: -25°C to 70°C
  • Category: Relays
  • Supply and Demand: Balanced
